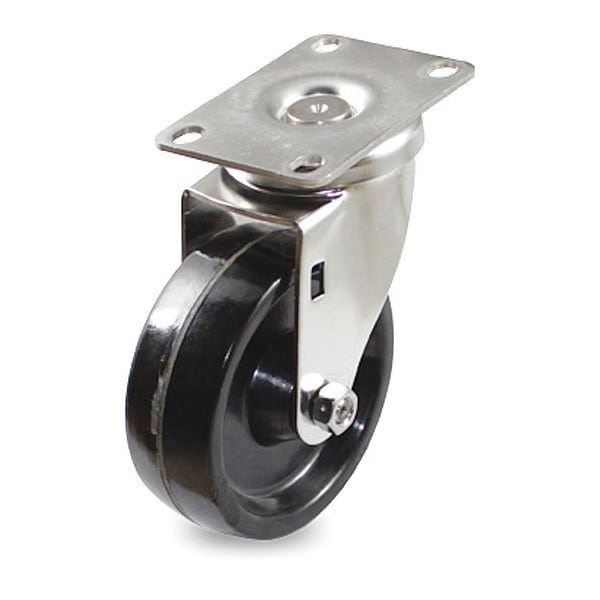

Pegasus Ctr, Swvl Plate, Stnls Stl, Phenolc, 220 lb. P12SX-HBP040G-12 - main

Ctr, Swvl Plate, Stnls Stl, Phenolc, 220 lb.

  • Mfr # P12SX-HBP040G-12

  • Zoro # G0247315

product price:  $43.95
/ea

Key Features

Tread
Standard
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Standards
RoHS, ICWM, NSF
Application
High Temperature, Food Industry / Bakeries
Mounting Bolt Dia.
5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12SX-HBP040G-12
Zoro #
G0247315
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Width
1-1/4 in
Overall Height
5-3/16 in
Wheel Dia.
4 in
Swivel Radius
3-1/4 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in

Details

Item
Swivel Caster
Tread
Standard
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Standards
RoHS, ICWM, NSF
Application
High Temperature, Food Industry / Bakeries
Frame Finish
Stainless Steel
Caster Brake Included
No
Tread Color
Black
Caster Mounting Type
Plate
System of Measurement
Inch
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Core Color
Black
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Brake Type
No Brake Included
Non-Marking
Yes
Replacement Wheel
Mfr. No. P-HBP-040x013/038G
Caster Frame Material
Stainless Steel
Extended Lead
No
Load Rating Range
Light Duty
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Wheel Core Material
Phenolic
Includes Thread Guards
No
Tread Shape
Standard
Series
P12X Series
Number of Mounting Holes
4
Load Capacity
220 lb
Wheel Bearing Type
Plain
Wheel/Tread Material
Hi-Temp Phenolic
Wheel Hardness Rating
Rockwell 102 E
Operating Temperature Range
-65 Degrees To 250 Degrees F

Description

Ctr,Swvl Plate,Stnls Stl,Phenolc,220 lb.
