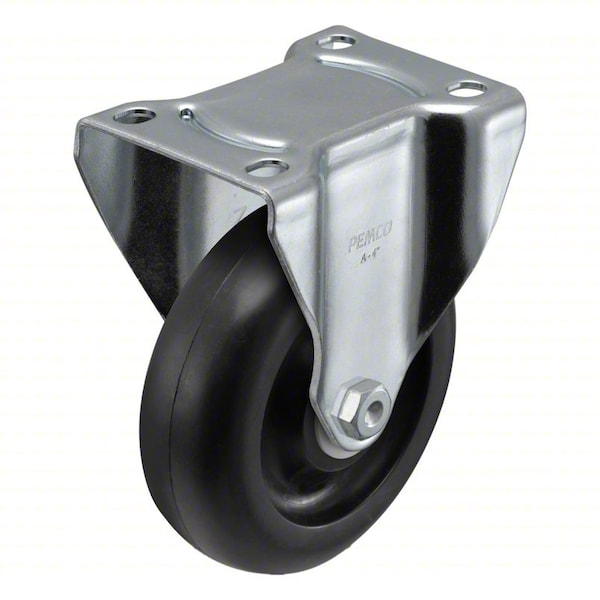

Plate Casters

  • Mfr # AR40P1POD
  • Zoro # G513302162
product price:
$
6.59
/ea

Key Features

Mounting Bolt Dia.
5/16 in
Number of Wheels
1
Overall Wheel Width
1 1/4 in
Caster Brake Type
No Brake
Includes
Rigid Top Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AR40P1POD
Zoro #
G513302162
UPC #
-
Country of Origin
China
Number of Wheels
1
Caster Brake Type
No Brake
Includes
Rigid Top Plate
Non-Marking
No
Caster Sub-Type
Rigid
Wheel Core Material
Polyolefin
System of Measurement
Inch
Features
Light Duty Caster
Frame Finish
Zinc Plated
Load Rating
300 lb
Caster Mounting Type
Plate
Application
Food Service, Hospitality, Institutional, Retail Environment
Wheel/Tread Color
Black
Item
Plate Caster
Core Color
Black
Caster Frame Material
Steel
Wheel Bearing Type
Delrin
Includes Thread Guards
No
Wheel/Tread Material
Polyolefin
Operating Temperature Range
-40 Degrees to 180 Degrees F
Load Rating Range
300 to 999 lb
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
300 lb
Tread Shape
Standard
Includes Spanner Bushing
Yes
For Surface Type
Aluminum, Brick, Carpet, Concrete, Grease, Oil, Steel
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Swivel Raceway Type
Double Ball

Dimensions

Mounting Bolt Dia.
5/16 in
Overall Wheel Width
1 1/4 in
Mounting Height
5 1/4 in
Mounting Plate Size
2 1/2 in x 3.622 in
Wheel Width
1 1/4 in
Swivel Radius
0 in
Wheel Dia.
4 in
For Axle Dia.
3/8 in
Hub Length
1 1/2 in
Inside Slot Spacing - Length
2.75 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
3 5/8 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3 in
Mounting Plate Width
2 1/2 in
Fits Chest Size
Light Duty Caster

Description

Rigid, Plate Caster, Load Rating 300 lb, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
