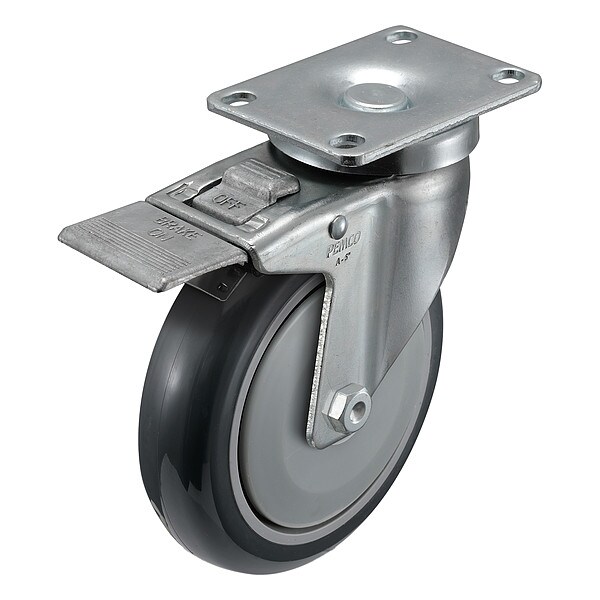

Pemco Plate Casters AS50P1TPUTL - main

Plate Casters

  • Mfr # AS50P1TPUTL

  • Zoro # G413326428

product price:  $15.19
/ea

Key Features

For Axle Dia.
3/8 in
Brake Location
Rear
System of Measurement
Inch
Includes Thread Guards
Yes
Frame Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AS50P1TPUTL
Zoro #
G413326428
UPC #
-
Country of Origin
China

Dimensions

For Axle Dia.
3/8 in
Mounting Bolt Dia.
5/16 in
Mounting Height
6 1/4 in
Wheel Dia.
5 in
Mounting Plate Size
2 1/2 in x 3.622 in
Wheel Width
1 1/4 in
Swivel Radius
4 7/16 in
Overall Wheel Width
1 1/4 in
Hub Length
1 5/8 in
Mounting Plate Length
3 5/8 in
Inside Slot Spacing - Length
2.75 in
Outside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Width
2 1/2 in
Inside Slot Spacing - Width
1.75 in

Details

Brake Location
Rear
System of Measurement
Inch
Includes Thread Guards
Yes
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Application
Food Service, Hospitality, Institutional, Retail Environment
Includes
Total Lock Brake
Non-Marking
No
Load Rating Range
300 to 999 lb
Item
Plate Caster
Wheel Core Material
Polyurethane
Features
Light Duty Caster
Caster Sub-Type
Swivel
Core Color
Gray
Wheel Bearing Type
Ball
Operating Temperature Range
-40 Degrees to 180 Degrees F
Caster Mounting Type
Plate
Caster Brake Type
Total Lock
Load Rating
350 lb
Number of Wheels
1
Wheel/Tread Color
Gray
Wheel/Tread Material
Polyurethane
Load Capacity - Maximum
350 lb
Wheel Hardness Rating
90 Shore A
Tread Shape
Standard
Includes Spanner Bushing
No
Caster Features
Easy Turn
Swivel Raceway Type
Double Ball
For Surface Type
Aluminum, Asphalt, Brick, Carpet, Ceramic, Concrete, Grease, Oil, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 350 lb, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking No, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
