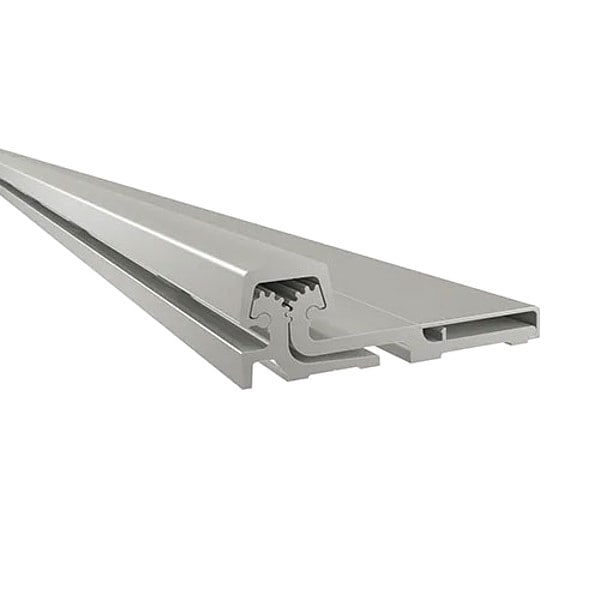

Piano Hinge, Bronze, 83 in Leaf Ht, 1 3/8 in Leaf W
Mfr # CFS83-HD1-M
Zoro # G809192736
product price:Â $430.99
/ea
Free Shipping & Returns
Key Features
Material
Bronze
Load Capacity
600 lb
Range of Motion
180 Degrees
Holes
12
Door Leaf Width
1 3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CFS83-HD1-M
- Zoro #
- G809192736
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Door Leaf Width
- 1 3/8 in
- Door Leaf Height
- 83 in
- Door Leaf Thickness
- 0.187 in
- Frame Leaf Width
- 1 1/4 in
- Required Door Thickness
- 1 3/4 in
- Door Thickness - Maximum
- 1 3/4 in
- Hinge Length
- 2.88 in
Details
- Item
- Piano Hinge
- Material
- Bronze
- Load Capacity
- 600 lb
- Range of Motion
- 180 Degrees
- Holes
- 12
- Holes per Leaf
- 4
- Orientation
- Non Handed
- ANSI/BHMA Finish
- Satin Aluminum, Clear Anodized
- Standards
- BHMA Certified, cULus UL 76Y2, UL 10C
- Range of Motion - Maximum
- 180 Degrees
- UL Fire Rating
- UL10C
- Hand Orientation
- Non-Handed
- Mounting Style
- Full Surface
- Number of Holes per Leaf
- 4
- Green Certification or Other Recognition
- UL Environment Claims Validated
Description
Piano Hinge, Bronze Material, 180 Degrees Range of Motion, Anodized Finish, 12 Holes, 600 lb Load Capacity, Non Handed Orientation, Not Applicable Overall Knuckle Height, 83 in Door Leaf Height, 1 3/8 in Door Leaf Width, 1 1/4 in Frame Leaf Width, 0.187 in Door Leaf Thickness, 1 3/4 in Required Door Thickness, Length 2.88 in, 4 Holes per Leaf, Full Surface Mounting, BHMA Certified, cULus UL 76Y2, UL 10C Standards, UL Fire Rating UL10C
