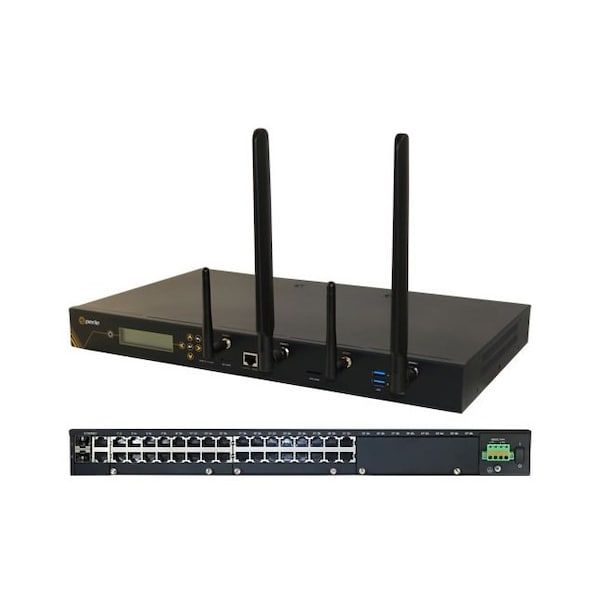

Perle IOLAN SCG34 S-LAWD Console Server: 32 x software selectable RS232/422/485 RJ45 interfaces, 04035430 - main

IOLAN SCG34 S-LAWD Console Server: 32 x software selectable RS232/422/485 RJ45 interfaces,

  • Mfr # 04035430

  • Zoro # G312348019

product price:  $9,268.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
24V DC to 60V DC
UNII Band
Yes
Wireless LAN
Yes
Maximum Memory Supported
3.91 GB
Number of Network (RJ-45) Ports
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
04035430
Zoro #
G312348019
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Depth
10.4"
Height
1.7"
Width
17.1"

Details

Item
Device Server
Input Voltage
24V DC to 60V DC
UNII Band
Yes
Wireless LAN
Yes
Maximum Memory Supported
3.91 GB
Number of Network (RJ-45) Ports
2
Environmentally Friendly
Yes
Network Standard
1000Base-X, 10/100/1000Base-T
Media Type Supported
Twisted Pair, Optical Fiber
Material
Metal
Management Port
Yes
ISM Band
Yes
Package Contents
IOLAN SCG34 S-LAW Console Server Front/Rear Mounting Hardware Adapter Cord
Ingress Protection (IP) Rating
IP30
Certifications & Standards
FCC 47 Part 15 Subpart B Class A ICES-003 (Canada) EN55011 (CISPR11) EN55032 (CISPR32) EN61000-3-2 Limits for Harmonic Current Emissions EN61000-3-3 Limits of Voltage Fluctuations and Flicker EN55024 EN 61000-4-2 (ESD): Contact: EN 61000-4-3 (RS): EN 61000-4-4 (EFT): EN 61000-4-5 (Surge): EN 61000-4-6 (CS): EN 61000-4-8 (PFMF) EN 61000-4-11 UL/EN/IEC 62368-1 (previously 60950-1) CAN/CSA C22.2 No. 62368-1
Mount Type
Rack-mountable
Network (RJ-45)
Yes
Network Band
Dual Band
Number of Serial Ports
32
Ethernet Technology
Gigabit Ethernet
Total Number of Expansion Slots
2
USB
Yes
Serial Port
Yes
Number of USB Ports
3
Device Type
Console Server
Standard Memory
1000 MB
Wireless LAN Standard
IEEE 802.11a/b/g/n
Processor Speed
500 MHz
Power Consumption
20.50 W
Plug/Connector Type
Terminal Block
Product Line
IOLAN

Description

04035430 IOLAN SCG34 S-LAWD Console Server: 32 x software selectable RS232/422/485 RJ45 interfaces, 2 x USB Ports
