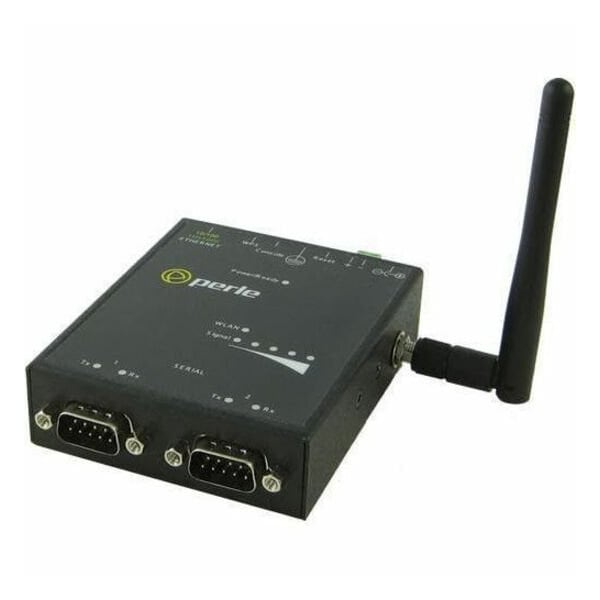

2PORT WL DEVICE SVR RS232 /422/485 DB9M SDS2 W 802.11 A/B/G/N

Mfr # 04031674
Zoro # G4410624

792.99

Free Shipping & Returns

Key Features

Input Voltage

30 V DC

Interface Ports

Software selectable EIA232/422/485 on DB9M

Serial Port Speeds

300bps to 230Kbps with customizable baud rate support

Mount Type

Panel-mountable, DIN Rail Mountable, Wall Mountable

Material

Metal

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 04031674
Zoro #: G4410624
UPC #: 734660316743
Country of Origin: Canada

Dimensions

Depth: 3.5"
Width: 3"
Height: 0.9"

Details

Item: Device Server
Input Voltage: 30 V DC
Interface Ports: Software selectable EIA232/422/485 on DB9M
Serial Port Speeds: 300bps to 230Kbps with customizable baud rate support
Mount Type: Panel-mountable, DIN Rail Mountable, Wall Mountable
Material: Metal
Ethernet Technology: Gigabit Ethernet
Network Band: Dual Band
Minimum Operating Temperature: -40°F (-40°C)
Processor Speed: 600 MHz
Serial Port: Yes
Network (RJ-45): Yes
Maximum Operating Temperature: 167°F (75°C)
Network Standard: 10/100/1000Base-T
Wireless LAN Standard: IEEE 802.11a/b/g/n/i
Standard Memory: 512 MB
Management Port: Yes
UNII Band: Yes
Wireless LAN: Yes
Power Consumption: 4.23 W
Ingress Protection (IP) Rating: IP40
Number of Serial Ports: 2
Media Type Supported: Twisted Pair
ISM Band: Yes
Input Voltage Range: 9 VDC to 30 VDC
Product Line: IOLAN

Description

IOLAN SDG2 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 2 x DB9M connectors with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, AC power adapter included
