  5. IDS409F3C2MD2SD20 6PORT MANAGED SWITCH GE RJ FE SC 2XMM SM20KM CTMP

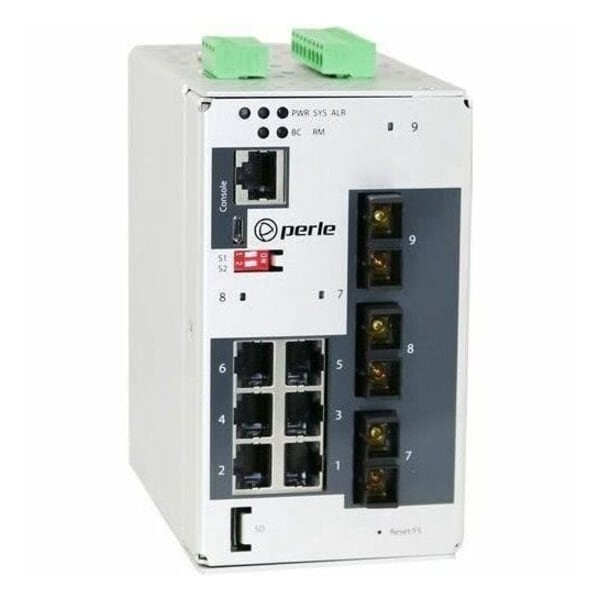

Perle Systems IDS409F3C2MD2SD20 6PORT MANAGED SWITCH GE RJ FE SC 2XMM SM20KM CTMP 07013570 - main

IDS409F3C2MD2SD20 6PORT MANAGED SWITCH GE RJ FE SC 2XMM SM20KM CTMP

  • Mfr # 07013570

  • Zoro # G4412417

product price:  $3,172.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
48 V DC, 24 V DC, 12 V DC, 24 V AC
Description/Special Features
Plug and Play, Broadcast Storm Control, Fanless, Remote Monitoring (RMON), Surge Protection, IP20
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
07013570
Zoro #
G4412417
UPC #
679202135706
Country of Origin
Canada

Dimensions

Width
5.1 in
Height
4.8 in
Fiber Optic Cable Wavelength
1310 nm
Depth
3 in

Details

Item
Ethernet Switch
Input Voltage
48 V DC, 24 V DC, 12 V DC, 24 V AC
Description/Special Features
Plug and Play, Broadcast Storm Control, Fanless, Remote Monitoring (RMON), Surge Protection, IP20
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Connector Type
Terminal Block
Mounting Type
DIN Rail Mountable, Compact, Panel-mountable, Wall Mountable
Housing Material
Metal
Fiber Mode Supported
Multi-mode, Single-mode
Network (RJ-45)
Yes
Port/Expansion Slot Details
2 x Fast Ethernet Duplex SC Connector, 1 x Fast Ethernet Duplex SC Connector, 6 x Gigabit Ethernet Network
Redundant Power Supply Supported
Yes
Total Number of Network Ports
9
Media Type Supported
Twisted Pair, Optical Fiber
Networking Standards
IEEE 802.1ab, IEEE 802.1w, IEEE 802.3z, IEEE 802.1p, IEEE 802.1D, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3, IEEE 802.1Q, IEEE 802.3x
Ethernet Technology
Gigabit Ethernet, Fast Ethernet
Layer Supported
3
Manageable
Yes
Power Source
Power Supply, AC/DC
Network Technology
10/100/1000Base-T, 100Base-LX, 100Base-FX

Description

IDS-409F3-C2MD2-SD20 Industrial Managed Switch, 9 ports: 6 x 10/100/1000Base-T Base-T RJ-45 ports and 2 x 100Base-FX, 1310nm multimode port with duplex SC connector [ up to 5km/3.1 miles ] and 1 x 100Base-LX, 1310nm single mode port with duplex SC connector [20 km/ 12.4 miles ]. -10 to 60C operating temperature.
