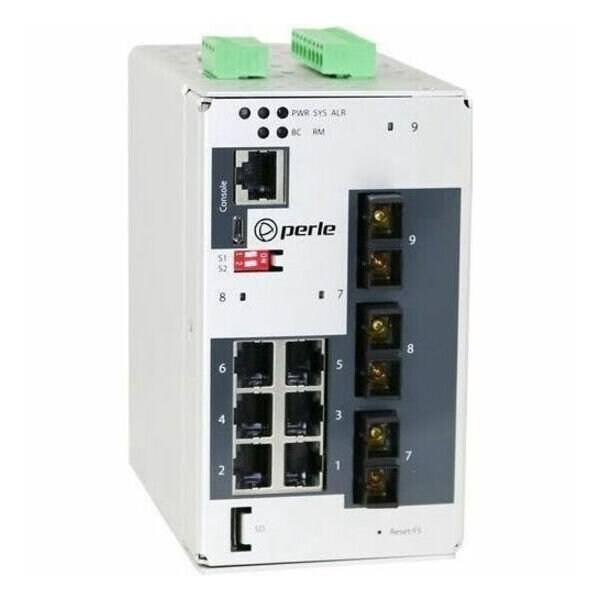

IDS409F3C2SD20MD2 6PORT MANAGED SWITCH GE RJ FE SC 2XSM20KM MM CTMP

  • Mfr # 07013650
  • Zoro # G4415059
product price:
$
3,116.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
48V DC, 24V DC, 9.6V DC, 60V DC, 12V DC, 24V AC
Description/Special Features
Fanless, Plug and Play, IP20
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
07013650
Zoro #
G4415059
UPC #
679202136505
Country of Origin
Canada

Dimensions

Width
5.1 in
Fiber Optic Cable Wavelength
1310 nm
Height
4.8 in
Depth
3 in

Details

Item
Ethernet Switch
Input Voltage
48V DC, 24V DC, 9.6V DC, 60V DC, 12V DC, 24V AC
Description/Special Features
Fanless, Plug and Play, IP20
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Network (RJ-45)
Yes
Networking Standards
IEEE 802.1w, IEEE 802.1D, IEEE 802.3x, IEEE 802.3, IEEE 802.1p, IEEE 802.1ab, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ad
Ethernet Technology
Fast Ethernet, Gigabit Ethernet
Media Type Supported
Twisted Pair, Optical Fiber
Redundant Power Supply Supported
Yes
Power Source
Power Supply, AC/DC
Fiber Mode Supported
Multi-mode, Single-mode
Total Number of Network Ports
9
Maximum Data Transfer Rate
128-MB/s
Port/Expansion Slot Details
1 x 100Base-FX Duplex SC Connector, 6 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port, 2 x 100Base-LX Duplex SC Connector
Connector Type
Terminal Block
Layer Supported
3
Housing Material
Metal
Manageable
Yes
Mounting Type
Compact, Panel-mountable, DIN Rail Mountable, Wall Mountable
Network Technology
100Base-LX, 10/100/1000Base-T, 100Base-FX

Description

IDS-409F3-C2SD20-MD2 Industrial Managed Switch, 9 ports: 6 x 10/100/1000Base-T Base-T RJ-45 ports and 2 x 100Base-LX, 1310nm single mode port with duplex SC connector [20 km/ 12.4 miles ] and 1 x 100Base-FX, 1310nm multimode port with duplex SC connector [ up to 5km/3.1 miles ] and. -10 to 60C operating temperature.
