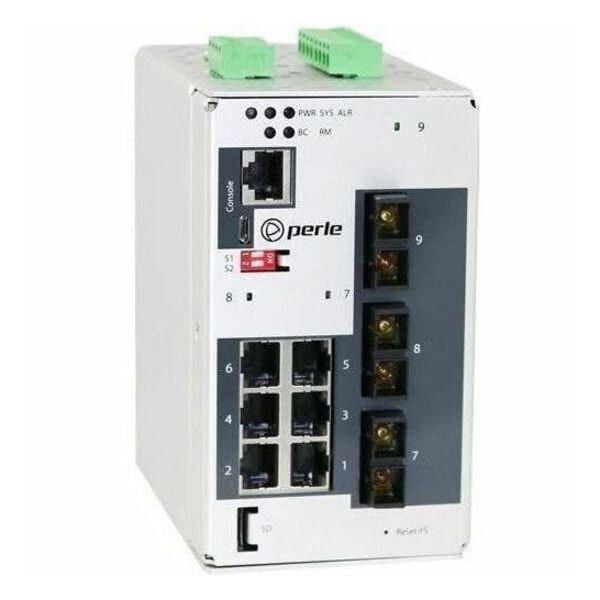

IDS509F3C2MD2SD20 6PORT MANAGED SWITCH GE RJ FE SC 2XMM SM20KM CTMP
- Mfr # 07013910
- Zoro # G4393377
product price:Â
$
2,226.99
/ea
Free Shipping & Returns
Key Features
Input Voltage
24 V AC, 48 V DC, 24 V DC, 12 V DC
Description/Special Features
Remote Monitoring (RMON), IP20, Alarm Relay, DHCP Relay, Plug and Play, Surge Protection, Broadcast Storm Control, Fanless
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 07013910
- Zoro #
- G4393377
- UPC #
- 679202139100
- Country of Origin
- Canada
- Item
- Ethernet Switch
- Input Voltage
- 24 V AC, 48 V DC, 24 V DC, 12 V DC
- Description/Special Features
- Remote Monitoring (RMON), IP20, Alarm Relay, DHCP Relay, Plug and Play, Surge Protection, Broadcast Storm Control, Fanless
- Standards
- IEEE 802.3
- Dual Power Input
- 12/24/48 VDC
- Access Ports
- Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
- Network (RJ-45)
- Yes
- Power Source
- Power Supply, AC/DC
- Mounting Type
- Panel-mountable, Wall Mountable, Compact, DIN Rail Mountable
- Networking Standards
- IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3, IEEE 802.1D, IEEE 802.3ad, IEEE 802.1w, IEEE 802.3x, IEEE 802.3u
- Media Type Supported
- Twisted Pair, Optical Fiber
- Port/Expansion Slot Details
- 6 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port, 2 x 100Base-FX Duplex SC Connector, 1 x 100Base-LX Duplex SC Connector
- Connector Type
- Terminal Block
- Housing Material
- Metal
- Network Technology
- 10/100/1000Base-T, 100Base-LX, 100Base-FX
- Ethernet Technology
- Fast Ethernet, Gigabit Ethernet
- Layer Supported
- 3
- Redundant Power Supply Supported
- Yes
- Total Number of Network Ports
- 9
- Manageable
- Yes
- Fiber Mode Supported
- Multi-mode, Single-mode
Description
IDS-509F3-C2MD2-SD20 Industrial Managed Switch, 9 ports: 6 x 10/100/1000Base-T Base-T RJ-45 ports and 2 x 100Base-FX, 1310nm multimode port with duplex SC connector [ up to 5km/3.1 miles ] and 1 x 100Base-LX, 1310nm single mode port with duplex SC connector [20 km/ 12.4 miles ]. -10 to 60C operating temperature. PRO Software feature set.
