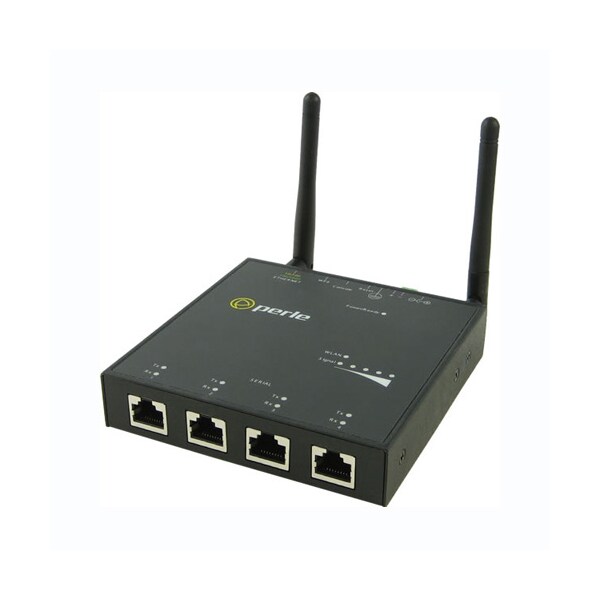

Perle Systems Iolan Sdg4 W Device Server 04031684 - main

Iolan Sdg4 W Device Server

  • Mfr # 04031684

  • Zoro # G4404665

product price: $1,193.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
12 V DC, 24 V DC
Serial Port Speeds
300bps to 230Kbps with customizable baud rate support
Interface Ports
Software selectable EIA232/422/485 on RJ45
Management Port
Yes
UNII Band
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
04031684
Zoro #
G4404665
UPC #
734660316842
Country of Origin
Canada

Dimensions

Height
4.3"
Width
4.4"
Depth
0.9"

Details

Input Voltage
12 V DC, 24 V DC
Serial Port Speeds
300bps to 230Kbps with customizable baud rate support
Interface Ports
Software selectable EIA232/422/485 on RJ45
Management Port
Yes
UNII Band
Yes
Ingress Protection (IP) Rating
IP40
Wireless LAN
Yes
Mount Type
DIN Rail Mountable, Wall Mountable, Panel-mountable
Item
Device Server
Network (RJ-45)
Yes
Network Standard
10/100/1000Base-T
Ethernet Technology
Gigabit Ethernet
Wireless LAN Standard
IEEE 802.11a/b/g/n
ISM Band
Yes
Maximum Operating Temperature
167°F (75°C)
Power Consumption
4.44 W
Total Number of Network Ports
4
Number of Network (RJ-45) Ports
4
Serial Port
Yes
Minimum Operating Temperature
-40°F (-40°C)
Connectivity Technology
Wireless
Media Type Supported
Twisted Pair
Processor Speed
600 MHz
Network Band
Dual Band
Standard Memory
512 MB
Data Link Protocols
TCP, UDP

Description

IOLAN SDG4 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 4 x RJ45 connectors with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, AC power adapter included
