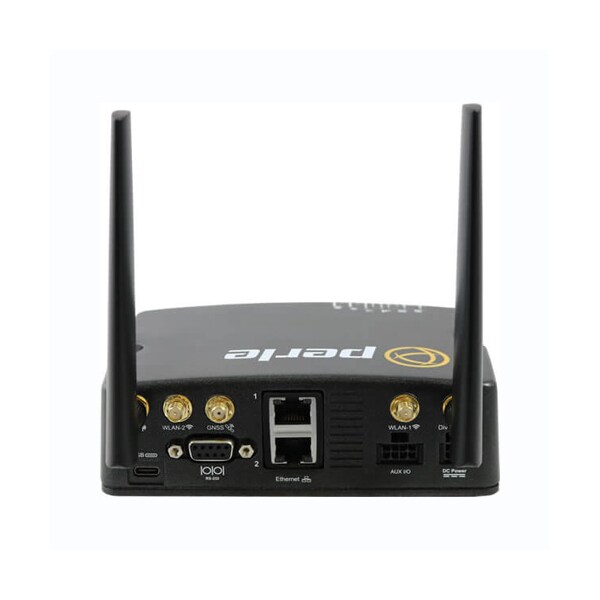

Perle Systems Irg5521+ Router, 08000309 08000309 - main

Irg5521+ Router, 08000309

  • Mfr # 08000309

  • Zoro # G4394899

product price: $2,108.99
/ea
Free Shipping & Returns

Key Features

USB Version
USB 3.2 Type C
Wi-Fi Generation
Wi-Fi 5
Cellular Network Supported
LTE 850, LTE 800, LTE 700, LTE 1700, LTE 1900, WCDMA 1900, LTE 2600, WCDMA 900, LTE 1500, LTE 2300, WCDMA 1700, LTE 1800, WCDMA 2100, WCDMA 850, LTE 2100, LTE 900, WCDMA 1800
Width
5.8 in
VPN Supported
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
08000309
Zoro #
G4394899
UPC #
734660003094
Country of Origin
Taiwan, Province of China

Dimensions

Width
5.8 in
SIM Size Supported
Mini
Depth
3.9 in
Height
1.8 in

Details

USB Version
USB 3.2 Type C
Wi-Fi Generation
Wi-Fi 5
Cellular Network Supported
LTE 850, LTE 800, LTE 700, LTE 1700, LTE 1900, WCDMA 1900, LTE 2600, WCDMA 900, LTE 1500, LTE 2300, WCDMA 1700, LTE 1800, WCDMA 2100, WCDMA 850, LTE 2100, LTE 900, WCDMA 1800
VPN Supported
Yes
UNII Band
Yes
Wireless LAN Standard
IEEE 802.11ac
UNII Maximum Frequency
5 GHz
Item
Wireless Router
Mounting
DIN Rail Mountable, Wall Mountable, Desktop, Panel-mountable
Broadband Transmission Technology
Cellular, Ethernet
Cellular Generation
4G
Flash Memory Capacity
4 GB
Memory Technology
DDR4 SDRAM
ISM Band
Yes
Number of Network (RJ-45) Ports
2
Network Band
Dual Band
Processor Speed
1.20 GHz
Ethernet Technology
Gigabit Ethernet
Number of SIM Card Supported
2
Package Contents
IRG5521+ Wireless Router GPIO Cable w/4 pin Plug and LTE Antennas
Cellular Data Connectivity Technology
UMTS, HSPA+, HSPA, DC-HSPA+, LTE Advanced
Environmentally Friendly
Yes
Encryption Standard
WPA-PSK, WPA2-PSK, AES, WEP
Standard Memory
1 GB
Frequency
2.40 GHz
Processor Type
Cortex A53
Processor Core
Dual-core (2 Core)
Multi-SIM Supported
Yes
Total Wireless Transmission Speed
108.38-MB/s
USB
Yes
Product Material
Die-cast Aluminum

Description

IRG5521+ LTE Router with integrated: LTE-A PRO (CAT12 600M / 150M), GPS/GNSS, Wireless LAN (2.4/5 GHz), 2 x 10/100/1000 RJ45 Ethernet, USB-C Port, RS232, GPIO, IGN (ignition sense pin), 2 x Digital Inputs, Alarm Relay, RS485 half-duplex, IP54 enclosure. GPIO Cable w/4 pin plug and LTE antennas included.
