Shop PERLE SYSTEMS

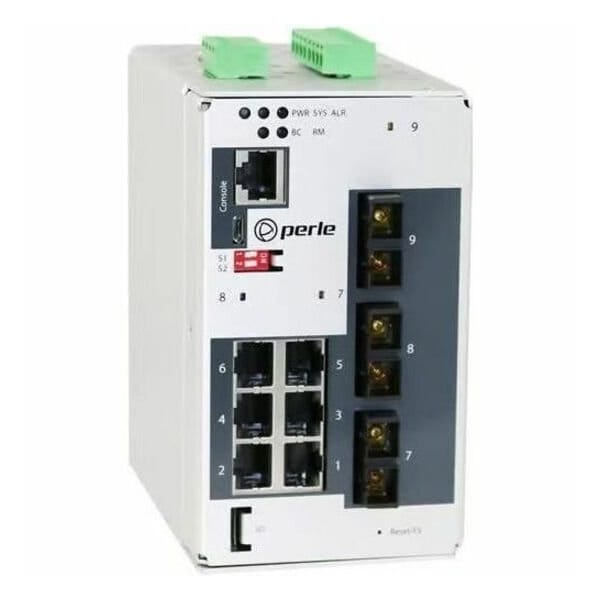

Perle IDS-409F3-C2MD2-SD120 - Industrial Managed Ethernet Switch

  • Mfr # 07013630

  • Zoro # G4412697

product price:
$
4,545.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
24 V DC, 24 V AC, 12 V DC, 48 V DC
Description/Special Features
Remote Monitoring (RMON), IP20, Broadcast Storm Control, Fanless, Surge Protection, Plug and Play
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
07013630
Zoro #
G4412697
UPC #
679202136307
Country of Origin
Canada

Dimensions

Width
5.1 in
Fiber Optic Cable Wavelength
1550 nm, 1310 nm
Depth
3 in
Height
4.8 in

Details

Item
Ethernet Switch
Input Voltage
24 V DC, 24 V AC, 12 V DC, 48 V DC
Description/Special Features
Remote Monitoring (RMON), IP20, Broadcast Storm Control, Fanless, Surge Protection, Plug and Play
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Manageable
Yes
Total Number of Network Ports
9
Networking Standards
IEEE 802.3u, IEEE 802.1p, IEEE 802.1D, IEEE 802.3z, IEEE 802.1w, IEEE 802.3, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad
Ethernet Technology
Gigabit Ethernet, Fast Ethernet
Media Type Supported
Optical Fiber, Twisted Pair
Network Technology
100Base-ZX, 10/100/1000Base-T, 100Base-FX
Port/Expansion Slot Details
1 x Fast Ethernet Duplex SC Connector, 2 x Fast Ethernet Duplex SC Connector, 6 x Gigabit Ethernet Network
Power Source
Power Supply, AC/DC
Housing Material
Metal
Redundant Power Supply Supported
Yes
Layer Supported
3
Network (RJ-45)
Yes
Mounting Type
Panel-mountable, Compact, Wall Mountable, DIN Rail Mountable
Fiber Mode Supported
Multi-mode, Single-mode
Connector Type
Terminal Block

Description

IDS-409F3-C2MD2-SD120 Industrial Managed Switch, 9 ports: 6 x 10/100/1000Base-T Base-T RJ-45 ports and 2 x 100Base-FX, 1310nm multimode port with duplex SC connector [ up to 5km/3.1 miles ] and 1 x 100Base-ZX, 1550nm single mode port with duplex SC connector [120 km/ 74.6 miles ]. -10 to 60C operating temperature.
