  5. Perle IDS-409F3-C2SD20-SD40 - Industrial Managed Ethernet Switch

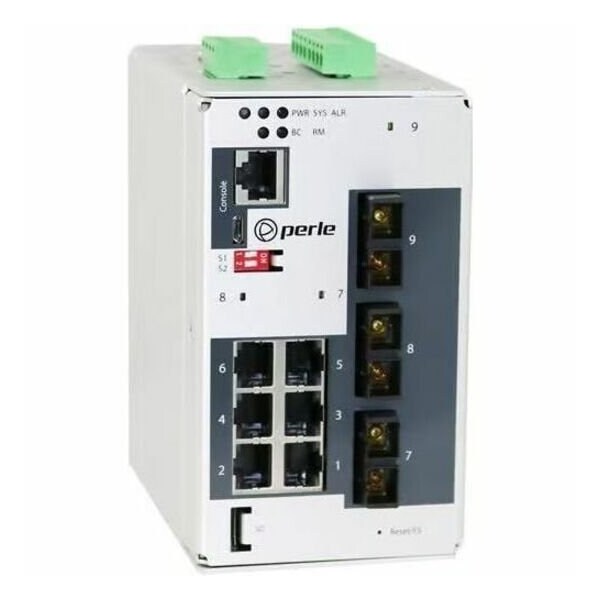

Perle Systems Perle IDS-409F3-C2SD20-SD40 - Industrial Managed Ethernet Switch 07013670 - main

Perle IDS-409F3-C2SD20-SD40 - Industrial Managed Ethernet Switch

  • Mfr # 07013670

  • Zoro # G4416547

product price:  $3,697.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
48 V DC, 12 V DC, 24 V DC, 24 V AC
Description/Special Features
Plug and Play, Fanless, Surge Protection, Remote Monitoring (RMON), Broadcast Storm Control, IP20
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
07013670
Zoro #
G4416547
UPC #
679202136703
Country of Origin
Canada

Dimensions

Depth
3 in
Height
4.8 in
Width
5.1 in
Fiber Optic Cable Wavelength
1310 nm

Details

Item
Ethernet Switch
Input Voltage
48 V DC, 12 V DC, 24 V DC, 24 V AC
Description/Special Features
Plug and Play, Fanless, Surge Protection, Remote Monitoring (RMON), Broadcast Storm Control, IP20
Standards
IEEE 802.3
Dual Power Input
12/24/48 VDC
Access Ports
Shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Network Technology
10/100/1000Base-T, 100Base-LX
Housing Material
Metal
Redundant Power Supply Supported
Yes
Mounting Type
Compact, Panel-mountable, Wall Mountable, DIN Rail Mountable
Manageable
Yes
Networking Standards
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.1D, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3z, IEEE 802.3, IEEE 802.1p
Connector Type
Terminal Block
Ethernet Technology
Fast Ethernet, Gigabit Ethernet
Power Source
AC/DC, Power Supply
Port/Expansion Slot Details
2 x Fast Ethernet Duplex SC Connector, 6 x Gigabit Ethernet Network, 1 x Fast Ethernet Duplex SC Connector
Media Type Supported
Optical Fiber, Twisted Pair
Fiber Mode Supported
Single-mode
Network (RJ-45)
Yes
Layer Supported
3
Total Number of Network Ports
9

Description

IDS-409F3-C2SD20-SD40 Industrial Managed Switch, 9 ports: 6 x 10/100/1000Base-T Base-T RJ-45 ports and 2 x 100Base-LX, 1310nm single mode port with duplex SC connector [20 km/ 12.4 miles ] and 1 x 100Base-LX, 1310nm single mode port with duplex SC connector [40 km/ 24.9 miles ]. -10 to 60C operating temperature.
