- MFR #
- 27085888
- Zoro #
- G4571265
- UPC #
- 679202033040
- Country of Origin
- Germany
- Color
- green
- Environmentally Friendly
- Yes
- Form Factor
- Rail-mountable
- Weight (Approximate)
- 6.48 oz
- Product Type
- Transceiver/Media Converter
- Fiber Mode Supported
- Single-mode, Multi-mode
- Fiber Optic Cable Standard
- 62.5/125 µm, 50/125 µm, 9/125 µm
- Package Contents
- PSI-MOS-RS232/FO1300 E Transceiver/Media Converter, 24VDC USA Wall Power Adapter
- Product Name

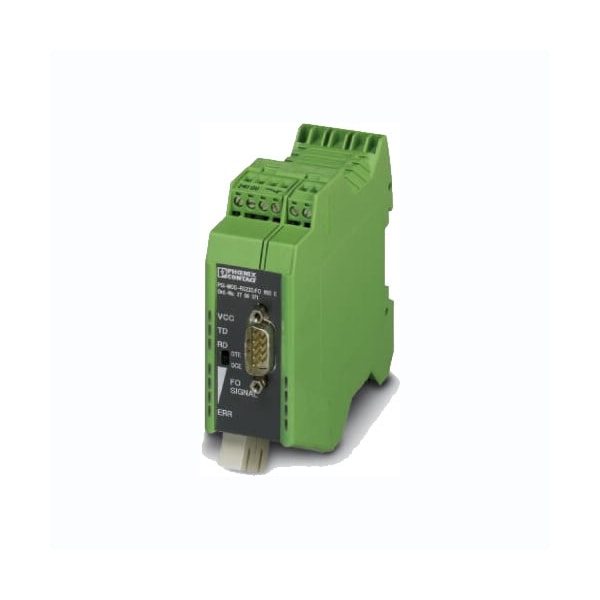

- PSI-MOS-RS232/FO1300 E Transceiver/Media Converter
- SC Port Type
- Duplex
- Total Number of Ports
- 2
- Media Type Supported
- Optical Fiber
- Power Source
- Power Supply
- Number of SC Ports
- 1
- Maximum Distance Supported
- 27.96 Mile
- Vibration (operation)
- In acc. with IEC 60068-2-6: 5g, 150 Hz
- Interface 1
- V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
- Permissible humidity (operation)
- 30 % ... 95 % (non-condensing)
- Bit distortion, input
- ± 35 % (permitted)
- Ambient temperature (storage/transport)
- -40 °C ... 85 °C
- Transmission protocol
- Transparent to protocol for RS-232 interface
- Number of FO ports
- 1
- Bit distortion, output
- < 6.25 %
- Transmission medium
- Multi-mode fiberglass; Single-mode fiberglass, Copper
- Limiting continuous current
- 1A
- Output name
- Relay output
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- ATEX
- II 3 G Ex nA nC IIC T4 Gc X
- Connection method
- COMBICON plug-in screw terminal block, SC duplex, D-SUB 9 plug
- Type of test
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6, Shock in acc. with EN 60068-2-27/IEC 60068-2-27
- Conductor cross section AWG max.
- 14
- Conductor cross section AWG min.
- 24
- Electromagnetic compatibility
- Conformance with EMC directive 89/336/EC
- Ambient temperature (operation)
- -20 °C ... 60 °C
- Connection in acc. with standard
- CUL
- UL, USA/Canada
- 508 listed; 508 recognized
- Supply voltage range
- 18 V DC ... 32 V DC
- Nominal supply voltage
- 24 V DC (With UL approval)
- Noise immunity
- EN 61000-6-2:2005
- Serial transmission speed
- 115.2 kbps (NRZ)
- Test result
- 5g, 10-150 Hz, 2.5 h, in XYZ direction, 15g, 11 ms period, half-sine shock pulse
- Electrical Isolation
- VCC // V.24 (RS-232)
- Number of outputs
- 1
- Altitude
- 5000 m (For restrictions see manufacturer's declaration)
- Free from substances that could impair the application of coating
- according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
- Test voltage data interface/power supply
- 1.5 kVrms (50 Hz, 1 min.)
- Typical current consumption
- 100 mA (24 V DC)
- Shock
- 15g in all directions in acc. with IEC 60068-2-27
- Housing material
- PA 6.6-FR
- Standards/regulations
- EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6
- Output description
- Alarm output
- Degree of protection
- IP20
- Conformance
- CE-compliant
- Conductor cross section solid min.
- 0.2 mm²
- Transmission channels
- 2 (1/1), RxD, TxD, full duplex
- Conductor cross section solid max.
- 2.5 mm²
- Maximum switching voltage
- 60 V DC; 42 V AC
- Noise emission
- EN 55011
