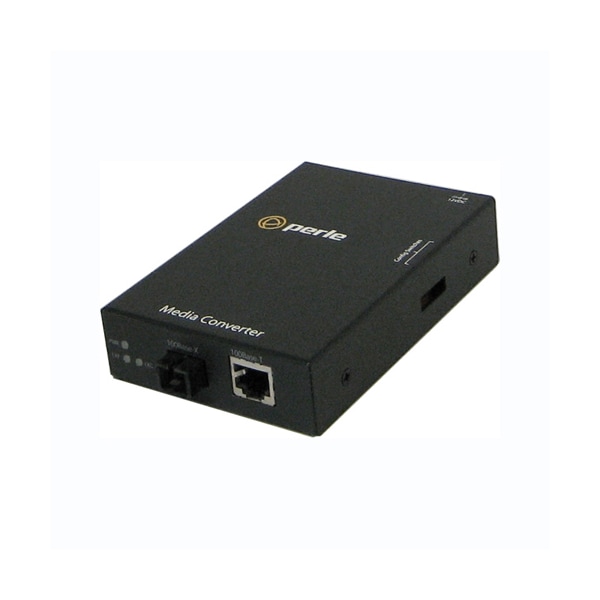

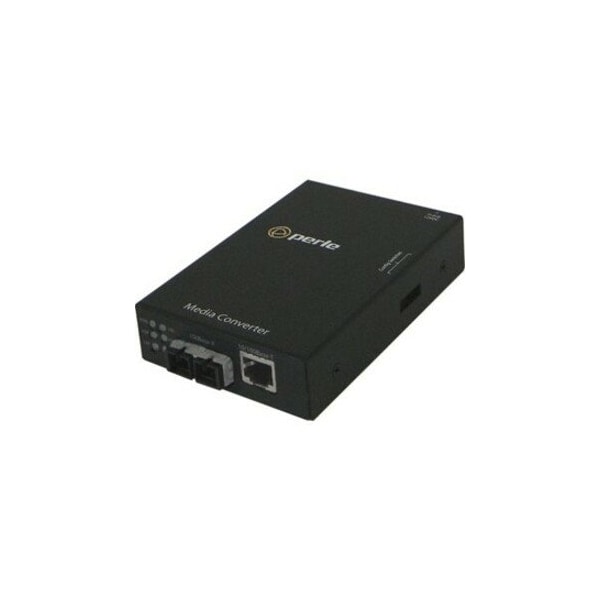

S-100-S1Sc20U Media Converter

Mfr # 05050274
Zoro # G4408585

$436.99

Free Shipping & Returns

Key Features

Fiber link on / Receive activity (LKF)

This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received.

Current

167 mA

Auto-Negotiation (802.3u)

Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 100Base-TX interface. It is set to advertise full duplex; Disabled- The media converter sets the 100Base-TX port to full duplex.

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Dimentions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05050274

Zoro #

G4408585

UPC #

734660502740

Country of Origin

Canada

Details

Fiber link on / Receive activity (LKF)

This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received.

Current

167 mA

Auto-Negotiation (802.3u)

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Dimentions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Operating Altitude

Up to 3,048 meters (10,000 feet)

Emissions

FCC Part 15 Class B*, EN55022 Class B*

Storage Humidity

5% to 95% non-condensing

Bit Error Rate (BER)

<10-12

Heat Output ( BTU/HR )

6.8

Copper link on / Receive activity (LKC)

This green LED is operational only when power is applied. The LED is on when the 100Base-TX link is on and flashes with a 50% duty cycle when data is received.

Link Pass Through

Enabled (Default)- When the state of the receiver is changed on the 100Base-TX interface it is reflected on the 100Base-FX fiber transmitter. When the state of the receiver on the 100Base-FX interface is changed it is reflected on the 100Base-TX transmitter; When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on; Disabled- The 100Base-TX and the 100Base-FX fiber interface operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the 100Base-TX interface.

Operating temperature

0 C to 50 C (32 F to 122 F)

Remote Loopback

The media converter can perform a loopback on the 100Base-X fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.

Storage temperature

minimum range of -25 C to 70 C (-13 F to 158 F)

Laser Safety

EN 60825-1:2007

100Base-TX

RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable

Operating Humidity

5% to 90% non-condensing

Auto-MDIX (Internal Strap)

If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the 100Base-TX interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default)- Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled- If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media convertor's transmitter and the partner devices transmitter are connected to the others receiver. The Media Convertor's 100Base-TX port is configured as MDI with this switch setting.

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Immunity

EN55024

Power Consumption

2.0 watts

Magnetic Isolation

1.5kv

Electrical Safety

UL 60950-1

Pause

Pause should be enabled when all devices connected to the media converter support pause. Auto-Negotiation must be Enabled to use this feature; Enabled (Default)- The Media converter will advertise Pause capability during Auto-Negotiation on the 100Base-TX interface; Disabled- The Media converter will advertise that it does not have Pause capability during Auto-Negotiation on the 100Base-TX interface.

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Fiber Optic Cable

Single mode single SC Media Converters; Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITu-T 625)

Description

S-100-S1SC20U - Fast Ethernet Media Converter: 100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-BX 1310nm TX / 1550nm RX single strand fiber, single mode (SC) [20 km/12.4 miles] - USA Power Cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
