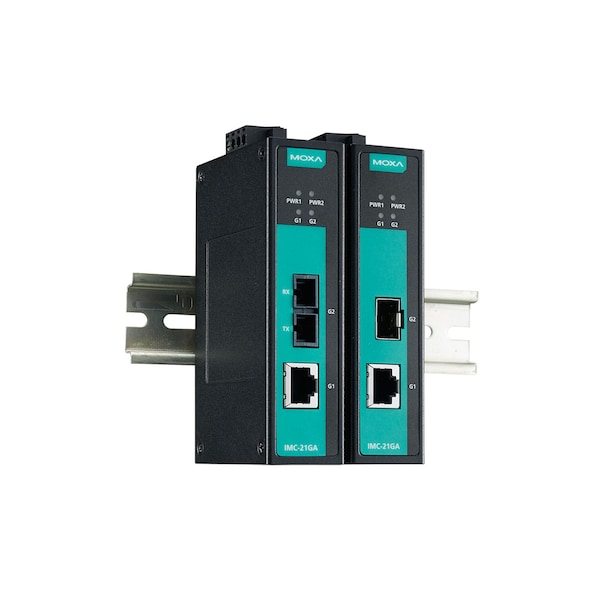

Indust. Gigabit Media Converter, Single-Mode 10Km, Sc, -10 To 60 DegreeC

Mfr # IMC-21GA-LX-SC
Zoro # G4394086

662.99

Free Shipping & Returns

Key Features

Standards

MIL-HDBK-217F

Wide Temp. Models

-40 to 75°C (-40 to 167°F)

Safety

EN 60950-1, UL 60950-1

Magnetic Isolation Protection

1.5 kV (built-in)

Ambient Relative Humidity

5 to 95% (non-condensing)

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: IMC-21GA-LX-SC
Zoro #: G4394086
UPC #: -
Country of Origin: Taiwan, Province of China

Dimensions

Dimensions: 30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)
1000BaseLX Ports (single-mode SC connector): IMC-21GA-LX-SC models: 1

Details

Standards: MIL-HDBK-217F
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Safety: EN 60950-1, UL 60950-1
Magnetic Isolation Protection: 1.5 kV (built-in)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Overload Current Protection: Supported
Vibration: IEC 60068-2-6
Environmental Testing: IEC 60068-2-1;IEC 60068-2-2;IEC 60068-2-3
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV;IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m;IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV;IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV;IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m;IEC 61000-4-8 PFMF;IEC 61000-4-11
Operating Temperature: Standard Models: -10 to 60°C (14 to 140°F);Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Input Current: 284.7 mA @ 12 to 48 VDC
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
EMC: EN 55032/24
Installation: DIN-rail mounting
Power Connector: Terminal block
Power Consumption: 284.7 mA @ 12 to 48 VDC
Standard Models: -10 to 60°C (14 to 140°F)
Input Voltage: 12 to 48 VDC
Housing: Metal
Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
10/100/1000BaseT(X) Ports (RJ45 connector): 1
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

Description

Industrial Gigabit Media Converter, Single-Mode 10km, SC, -10 to 60°C
