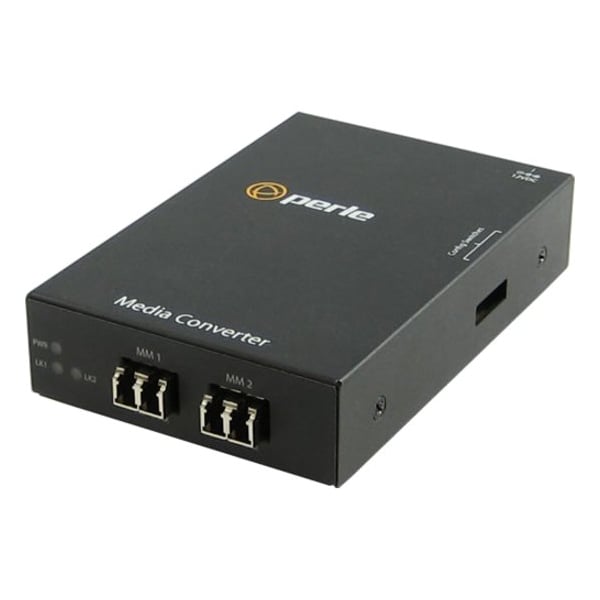

S-1000Mm-M2Lc2 Media Converter

Mfr # 05060484
Zoro # G4407797

$1,184.99

Free Shipping & Returns

Key Features

Width

3.1 in

Height

1 in

Depth

4.7 in

Media Type Supported

Optical Fiber

Input voltage

30 V DC

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

05060484

Zoro #

G4407797

UPC #

734660604840

Country of Origin

Canada

Dimensions

Width

3.1 in

Height

1 in

Depth

4.7 in

Dimensions

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Details

Media Type Supported

Optical Fiber

Input voltage

30 V DC

Weight (Approximate)

10.56 oz

LC Port Type

Duplex

Product Type

Transceiver/Media Converter

Product Name

S-1000MM-M2LC2 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter

Maximum Distance Supported

1.24 Mile

Environmentally Friendly

Yes

Fiber Optic Cable Standard

62.5/125 µm, 50/125 µm

Network Technology

1000Base-LX, 1000Base-SX

Form Factor

Desktop, Rail-mountable, Rack-mountable, Wall Mountable

Fiber Mode Supported

Multi-mode

Package Contents

S-1000MM-M2LC2 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, Universal DC Adapter

Total Number of Ports

Number of LC Ports

Certifications & Standards

Immunity: EN55024, IEEE Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x Emissions: FCC Part 15 Class A, EN55022 Class A,EN61000-3-2,CISPR 22 Class A Electrical Safety: EN60950,UL 60950-1,CE Laser Safety: EN 60825-1:2007,Class 1 Laser Safety Requirements per IEC-60825 FDA/CDRH Standards,21CFR1040.10,21CFR1040.11 Others: ECCN: 5A991A,HTSUS Number: 8517.62.0050

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

1000Base-X

Multimode dual LC [ 550 m/1804 ft ] to multimode dual LC fiber connector model; Available in SC, ST and LC connector models

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Laser Safety

EN 60825-1:2007

Operating temperature

0° C to 50° C (32° F to 122° F)

Electrical Safety

UL 60950-1

Storage Humidity

5% to 95% non-condensing

Emissions

FCC Part 15 Class A, EN55022 Class A

Power Consumption

2.5 watts

Operating Humidity

5% to 90% non-condensing

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Input Supply Voltage

6 - 30 vDC, unregulated ( 12 vDC Nominal )

Fiber Fault Alert

Enabled - (default up)- If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports; Disabled: The media converter will not monitor for fiber fault or generate them.

Operating Altitude

Up to 3,048 meters (10,000 feet)

Heat Output ( BTU/HR )

8.53

Immunity

EN55024

Bit Error Rate (BER)

<10-12

Universal AC/DC adapter

100-240v AC, regulated DC adapter included

Auto-Negotiation

Auto (default up)- Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through; Off- Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through.

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Remote Loopback #2

The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface

Storage temperature

minimum range of -25° C to 70° C (-13° F to 158° F)

Remote Loopback #1

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface

Current

0.21 amps

Description

S-1000MM-M2LC2 - Gigabit Fiber to Fiber Media Converter: 1000BASE-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000BASE-LX 1310nm Extended multimode (LC) [2km /6562 ft.] - USA Power Cord
