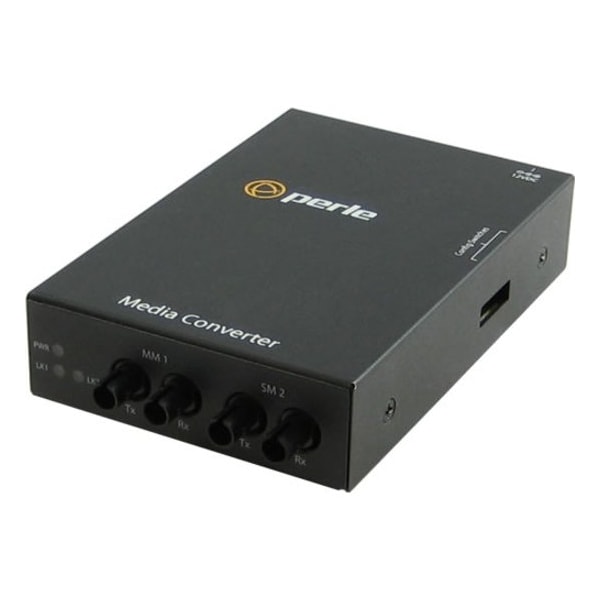

S-100Mm-S2St80 Media Converter
Mfr # 05060104
Zoro # G4404139
product price:Â
$
2,864.99
/ea
Free Shipping & Returns
Key Features
Emissions
FCC Part 15 Class B*, EN55022 Class B*
Link Pass Through
Operating Altitude
Up to 3,048 meters (10,000 feet)
Heat Output ( BTU/HR )
11.9
Remote Loopback #1
The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 05060104
- Zoro #
- G4404139
- UPC #
- 734660601047
- Country of Origin
- Canada
Dimensions
- Dimensions
- 120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches
Details
- Emissions
- FCC Part 15 Class B*, EN55022 Class B*
- Link Pass Through
- Operating Altitude
- Up to 3,048 meters (10,000 feet)
- Heat Output ( BTU/HR )
- 11.9
- Remote Loopback #1
- The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
- Remote Loopback #2
- The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.
- Bit Error Rate (BER)
- <10-12
- Fiber Optic Cable
- Multimode dual ST [ 2 km/1.2 ] to single dual ST fiber connector model; Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITu-T 625)
- Storage temperature
- minimum range of -25 C to 70 C (-13 F to 158 F)
- Immunity
- EN55024
- Fiber link 1 / Receive activity (LK1)
- This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
- Power Connector
- 5.5mm x 9.5mm x 2.1mm barrel socket
- Universal AC/DC adapter
- 100-240v AC, regulated DC adapter included
- Operating Humidity
- 5% to 90% non-condensing
- Current
- 0.29 amps
- Power / TST
- This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.
- Storage Humidity
- 5% to 95% non-condensing
- Electrical Safety
- UL 60950-1
- Operating temperature
- 0 C to 50 C (32 F to 122 F)
- Fiber link 2 on / Receive activity (LK2)
- This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
- Laser Safety
- EN 60825-1:2007
- Input Supply Voltage
- 6 - 30 vDC, unregulated ( 12 vDC Nominal )
- Power Consumption
- 3.5 watts
Description
S-100MM-S2ST80 - Fast Ethernet Fiber to Fiber Media Converter: 100BASE-FX 1310nm multimode (ST) [2 km/1.2 miles] to 100Base-ZX 1550nm single mode (ST) [80 km/49.7 miles] - USA Power Cord
