Product Type
Transceiver/Media Converter
Form Factor
Rack-mountable, Rail-mountable, Wall Mountable
Package Contents
S-10GRT-SFP - 10 Gigabit Media and Rate Converter, AC Adapter
Environmentally Friendly
Yes
Network Technology
10GBase-T, 10GBase-X, 10GBase-CX1
Weight (Approximate)
12.70 oz
Number of Total Expansion Slots
1
Maximum Distance Supported
328.08 ft
Product Name

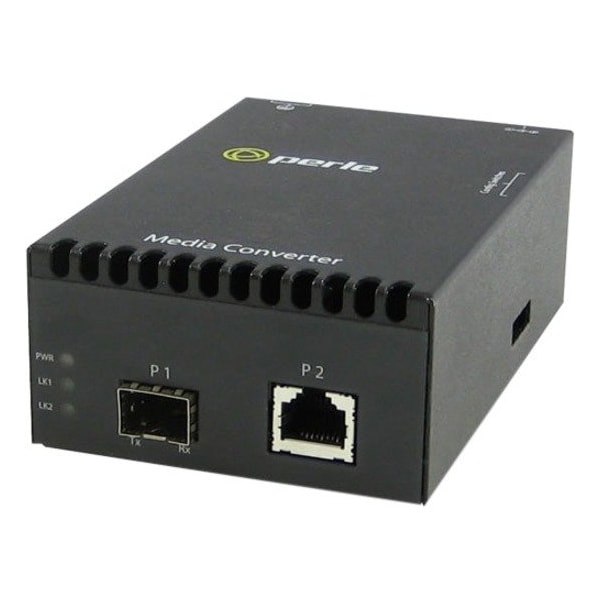

S-10GRT-SFP - 10 Gigabit Media and Rate Converter
Ethernet Technology
10 Gigabit Ethernet
Media Type Supported
Optical Fiber, Twisted Pair
Number of Network (RJ-45) Ports
1
Emissions
FCC Part 15 Class A, EN55022 Class A
Power / TST
On: Power indication and in normal operation; Blinking slowly: the unit is in loopback or test mode (either port); Red solid: the unit has a hardware error (upon power up); Red and blinking: the unit has a hardware error specified by combination of LK1 and LK2
Fiber Fault Alert
Enabled (Default - Up); With Fiber Fault Alert the state of the 10 Gigabit ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G ethernet interface of the media converter; Disabled (Down)
Test Mode
Through the use of three dip switches the unit, and its peer, can be placed into a link test mode which will verify the integrity of the link through the use of its built-in link test generator. The unit can also be placed into a simple line loopback.
Electrical Safety
UL 60950-1
Storage Humidity
5% to 95% non-condensing
Universal AC/DC adapter
100-240v AC, regulated AC/12v DC adapter included
Operating temperature
0° C to 50° C (32° F to 122° F)
LK1 (SFP/XFP)
On: Link present; Blinking quickly: Fiber link present and receiving data.(including test data); Blinking slowly: Fiber link disabled because the other fiber link went down; Blinking 1 sec on 3 sec off - module shut down due to high temperature; Off: No fiber link present or no module inserted
Chassis
Metal with an IP20 ingress protection rating
EEE Green Ethernet
When enabled (default), the media converter will operate as an IEEE 802.3az Energy Efficient Ethernet (EEE) compliant device.
Operating Humidity
5% to 90% non-condensing
Operating Altitude
Up to 3,048 meters (10,000 feet)
Loopback
Capable of performing a loopback on the 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link.
LK2
On: 10GBase-T link present; Blinking quickly: Link present and receiving data; Blinking slowly: Link disabled because Link 1 went down; Off: 10GBase-T link is not active
Storage temperature
minimum range of -25° C to 70° C (-13° F to 158° F)
Input Supply Voltage
9 - 30 vDC, unregulated ( 12 vDC Nominal )
Power Connector
5.5mm x 9.5mm x 2.1mm barrel socket
