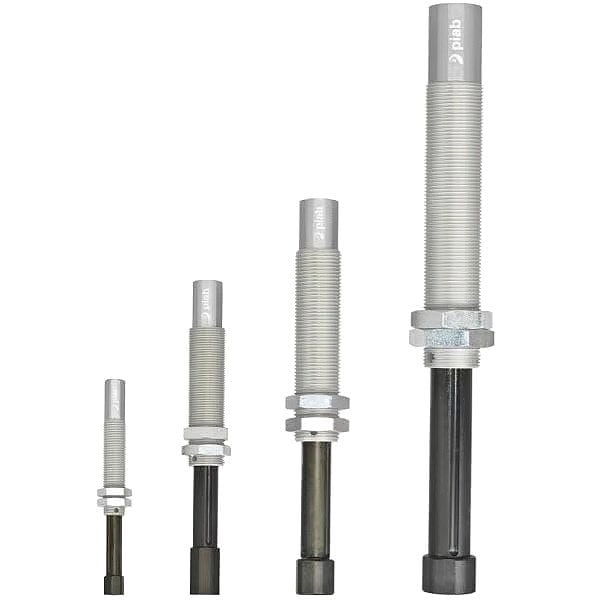

Level Compensator, Male, 19.05 mm
Mfr # LC16-M1820
Zoro # G216153078
product price:Â
$
81.15
/ea
Key Features
Minimum Operating Temperature
0 Degrees C
Buffer Rotation
Non-Rotating
Series
LC16
Stroke Length
20.07 mm
Maximum Operating Temperature
60 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LC16-M1820
- Zoro #
- G216153078
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Stroke Length
- 20.07 mm
- Hex Size
- 19.05 mm
- Pad End Port Size
- 1/8 in
- Vacuum End Port Size
- 1/8 in
- Overall Length
- 96.52 mm
- External Mounting Screw Size
- M16
- External Mounting Thread Size
- M16 x 1
- Wire Rope Length
- 96.52 mm
- Length
- 96.52 mm
Details
- Item
- Level Compensator
- Minimum Operating Temperature
- 0 Degrees C
- Buffer Rotation
- Non-Rotating
- Series
- LC16
- Maximum Operating Temperature
- 60 Degrees C
- Case Material
- Aluminum, Stainless Steel
- Pad End Port Type
- G
- Spring Rate
- 0.27 N/mm
- Weight
- 36 g
- Vacuum End Port Type
- G
- Standards
- PFAS Regulations, REACH, RoHS
- Vacuum End Port Gender
- Male
- Spring Force
- 9 N
Description
Item Level Compensator, Buffer Rotation Non-Rotating, Case Material Aluminum, Stainless Steel, External Mounting Screw Size M16, External Mounting Thread Size M16 x 1, Hex Size 19.05 mm, Maximum Operating Temperature 60 Degrees C, Minimum Operating Temperature 0 Degrees C, Overall Length 96.52 mm, Pad End Port Size 1/8 in, Pad End Port Type G, Series LC16, Spring Force 9 N, Spring Rate 0.27 N/mm, Standards PFAS Regulations, REACH, RoHS, Stroke Length 20.07 mm, Vacuum End Port Size 1/8 in
