Wilkerson

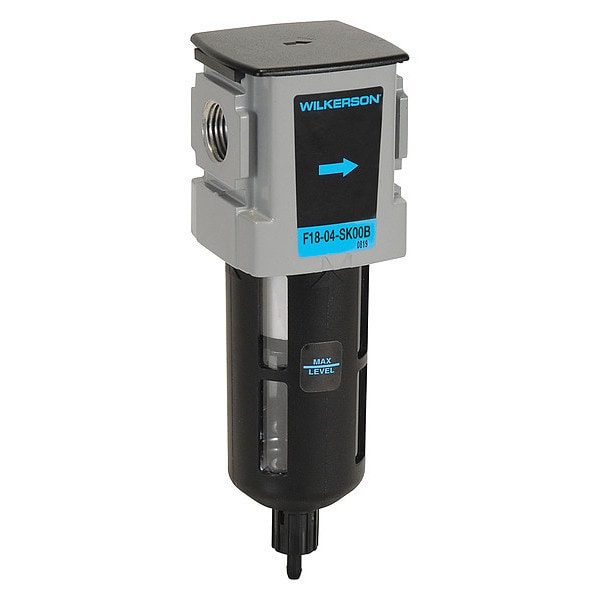

Compressed Air Filter, 5 micron Rating

original price: $67.49
21% off
new price: $53.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bowl Size - Air Treatment 1.7 oz
  • Overall Depth 2 3/8 in
  • Filter Rating 5 micron
  • Connection Size - Air Treatment 1/2 in NPT
  • Drain Port Size 3/16 in
See all product information

Product Information

Dimensions

Bowl Size - Air Treatment 1.7 oz
Overall Depth 2 3/8 in
Connection Size - Air Treatment 1/2 in NPT
Drain Port Size 3/16 in
Overall Width 2 3/8 in
Size - Air Treatment Compact
Overall Height 7 1/2 in
Air Inlet Size 1/2 in
Air Outlet Size 1/2 in

Details

Item Compressed Air Filter
Filter Rating 5 micron
Drain Type Manual
For Removal Of Particles, Water
Bowl Material - Air Treatment Polycarbonate with Guard
Max. Temp. 125 Degrees F
Item - Air Filters Compressed Air Filter
Max. Incoming Pressure - Air Treatment 150 psi
Filter Rating - Air Treatment 5 micron
Max. Flow - Air Treatment 130 cfm
Weight 0.62 lb
Standards ISO
Number of Air Inlets 1
Drain Included Yes
Filter Element Material Sintered Polyethylene
Maximum Operating Pressure 150 psi
Filter Type Particulate
Filter Bowl Material Plastic
Filter Bowl Guard Included Yes
ISO Class 3
Seal Material Nitrile
For Substance Type Water, Particulate Contamination
For Fluid Type Water
Series F18
Filter Bowl Capacity 1.7 oz
Air Inlet Type NPT
Modular Connection Modular Connection
Number of Air Outlets 1
System Location Air Line
Filter Bowl Guard Material Nylon
Maximum Operating Temperature 125 Degrees F
Maximum Flow Rate 82 cfm
Minimum Operating Temperature -13 Degrees F
Pressure Drop 4.9 psig
Body Material Aluminum
Air Outlet Type NPT
Gauge Included No

Description

Compressed Air Filter, Filter Type Particulate, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 82 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 125 Degrees F, Overall Width 2 3/8 in, Overall Height 7 1/2 in, Drain Included Yes, Filter Bowl Material Polycarbonate, Drain Type Manual, Series F18, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 1.7 oz, Filter Bowl Guard Included Yes, Filter Bowl Guard Material Nylon
