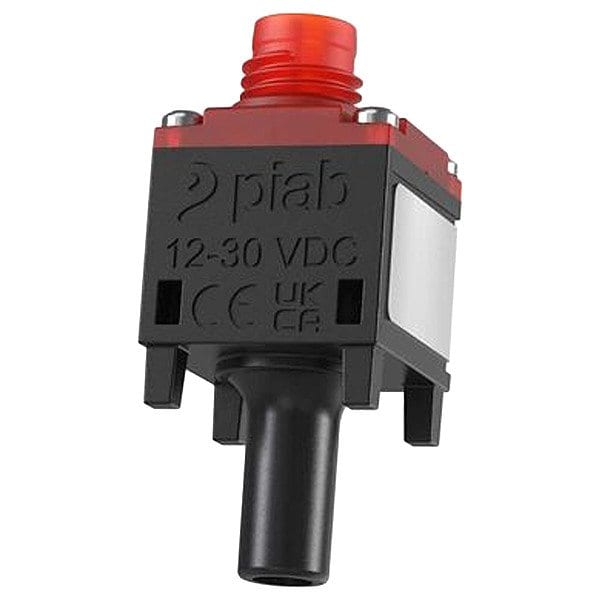

Vacuum Pressure Switch, PNP/NPN, 47 kPa to 13.88"Hg Range
Mfr # 01.10.246
Zoro # G110064753
product price:Â
$
71.99
/ea
Key Features
Range
47 kPa to 13.88 in Hg
Housing Material
Cuznau; Polyamide; Stainless Steel; Steel; Thermoplastic Polyurethane
Pressure Switch Port Type
PNP/NPN
Voltage
24V DC
Series
VS4015
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 01.10.246
- Zoro #
- G110064753
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Port Size
- 6 mm
- Overall Depth
- 16 1/4 mm
- Overall Width
- 16.25 mm
- Overall Height
- 29.75 mm
Details
- Item
- Vacuum Switch
- Range
- 47 kPa to 13.88 in Hg
- Housing Material
- Cuznau; Polyamide; Stainless Steel; Steel; Thermoplastic Polyurethane
- Pressure Switch Port Type
- PNP/NPN
- Voltage
- 24V DC
- Series
- VS4015
- Maximum Vacuum Pressure
- 29 psi
- Body Material
- Cuznau; Polyamide; Stainless Steel; Steel; Thermoplastic Polyurethane
- Minimum Operating Temperature
- -13 Degrees F
- Signal Pressure - Maximum
- 13.88 in Hg
- Signal Pressure - Minimum
- 47 kPa
- Weight
- 0.01 lb
- Switch Output Type
- PNP Output/NPN Output
- Maximum Operating Temperature
- 185 Degrees F
- Port Type
- PNP/NPN
Description
Vacuum Switch, Body Material Cuznau; Polyamide; Stainless Steel; Steel; Thermoplastic Polyurethane, Maximum Operating Temperature 185 Degrees F, Maximum Vacuum Pressure 29 psi, Minimum Operating Temperature -13 Degrees F, Overall Depth 16 1/4 mm, Overall Height 29.75 mm, Overall Width 16.25 mm, Port Size 6 mm, Port Type PNP/NPN, Series VS4015, Signal Pressure - Maximum 13.88 in Hg, Signal Pressure - Minimum 47 kPa, Switch Output Type PNP Output/NPN Output, Voltage 24V DC, Weight 0.01 lb
