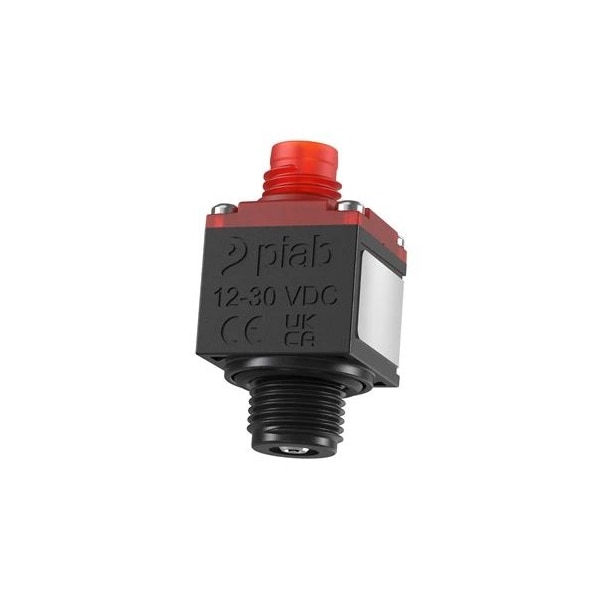

Vacuum Switch, 24VDC, 16/25" W, 47/50" H
- Mfr # 01.10.249
- Zoro # G010064754
product price:Â
$
68.15
/ea
Key Features
Housing Material
Cuznau; Polyamide; Stainless Steel; Steel; Thermoplastic Polyurethane
Pressure Switch Port Type
PNP/NPN
Series
VS4015
Voltage
24V DC
Switch Output Type
PNP Output/NPN Output
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 01.10.249
- Zoro #
- G010064754
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Port Size
- 1/8 in
- Overall Width
- 16.25 mm
- Overall Height
- 23.9 mm
- Overall Depth
- 16 1/4 mm
Details
- Item
- Vacuum Switch
- Housing Material
- Cuznau; Polyamide; Stainless Steel; Steel; Thermoplastic Polyurethane
- Pressure Switch Port Type
- PNP/NPN
- Series
- VS4015
- Voltage
- 24V DC
- Switch Output Type
- PNP Output/NPN Output
- Minimum Operating Temperature
- -13 Degrees F
- Signal Pressure - Maximum
- 13.88 in Hg
- Signal Pressure - Minimum
- 47 kPa
- Maximum Vacuum Pressure
- 29 psi
- Weight
- 0.01 lb
- Maximum Operating Temperature
- 185 Degrees F
- Body Material
- Cuznau; Polyamide; Stainless Steel; Steel; Thermoplastic Polyurethane
- Port Type
- PNP/NPN
Description
Vacuum Switch, Body Material Cuznau; Polyamide; Stainless Steel; Steel; Thermoplastic Polyurethane, Maximum Operating Temperature 185 Degrees F, Maximum Vacuum Pressure 29 psi, Minimum Operating Temperature -13 Degrees F, Overall Depth 16 1/4 mm, Overall Height 23.9 mm, Overall Width 16.25 mm, Port Size 1/8 in, Port Type PNP/NPN, Series VS4015, Signal Pressure - Maximum 13.88 in Hg, Signal Pressure - Minimum 47 kPa, Switch Output Type PNP Output/NPN Output, Voltage 24V DC, Weight 0.01 lb
