- MFR #
- 701DDS-T-254C
- Zoro #
- G6650034
- UPC #
- -
- Country of Origin
- China
- Item

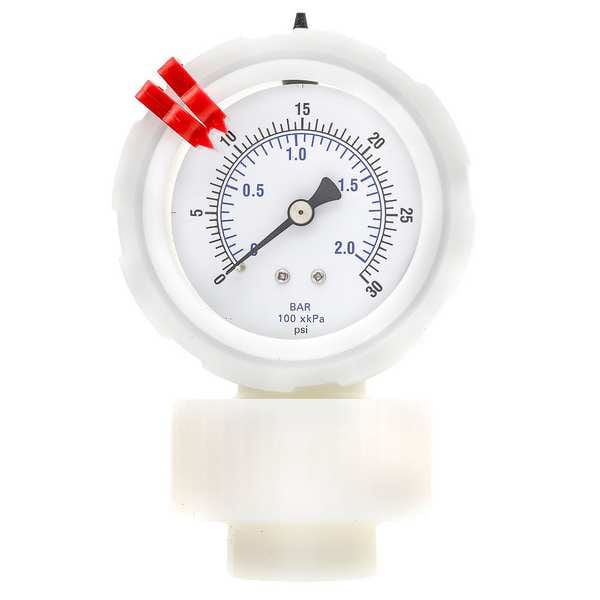

- Compound Gauge with Diaphragm Seal
- Accuracy
- +/-2-1-2%
- Process Connection Location
- Bottom
- Process Connection Type
- NPT
- Application
- Water Treatment Applications
- Gauge Case Material
- PVDF
- Series
- 701DDS-T-254
- Lens Material
- Polycarbonate
- Primary Pressure Range
- 0 to 30
- Primary Scale Units
- psi
- IP/NEMA Rating
- IP65
- Liquid-Filled Case
- No
- Hazardous Location Rating
- Not Rated
- Panel-Mountable
- No
- Blowout Safety Back
- No
- Includes
- Vent Plug with PTFE Seal
- Gauge Primary Range Numbered Graduations
- 10
- Case Color
- White
- Gauge Primary Range Smallest Graduation
- 1
- For Use With
- Wastewater Treatment, Water
- Calibration Certificate Included
- No
- Smallest Graduation
- 0.5 psi
- Graduations
- 5 psi
- Case Material
- PVDF
- Socket Material
- PTFE
- Wetted Materials
- Brass
- Standards
- ASME B40.100
- Connection Type
- FNPT
- Vibration Resistance
- Field-Fillable
- Dry Dampening Feature
- None
- Scale Type
- Dual
- Ambient Operating Temperature Range
- -20 Degrees to 60 Degrees C, -4 Degrees to 140 Degrees F
- Field Fillable
- Yes
- Cleaned for Oxygen Service
- No
- Process Connection Gender
- Female
- Accuracy Scale
- Mid-Scale
- Pointer Color
- Black
- Case Construction
- One Piece Molded
- Adjustable Pointer
- No
- Includes Vent Plug
- Yes
- Seal Lower Housing Material
- 316 Stainless Steel
- Secondary Scale Units
- bar
- Diaphragm Seal Type
- Threaded
- Pressure Gauge Type
- Process Pressure Gauge with Diaphragm Seal
- Secondary Pressure Range
- 0 to 60
- Gauge Case Liquid
- None
- Primary Scale Minor Graduations
- 1
- Includes Calibration Certificate
- No
- Process Temperature Range
- -4 Degrees to 140 Degrees F
- Includes Mounting Hardware
- No
- Seal Fill Liquid
- Glycerin
- Seal Diaphragm Material
- PTFE
- Primary Scale Numeric Increments
- 10
- Bezel Material
- Polyvinylidene Fluoride
- Pressure Range Type
- Pressure
- Pointer Material
- Aluminum
- Seal Compatible Process Media
- Anything compatible with PTFE and PVDF
- Removable Bezel
- Yes
- Sensor Material
- Brass
- Dial Color
- White
- Freeze Resistant Movement
- No
- Clog Resistant
- No
- Accuracy Grade
- ASME B40.1 Grade A
- Case Finish
- PVDF
- Maximum Pressure
- 30
- Diaphragm Seal Material
- PTFE
- Operating Temperature Range
- -4 Degrees to 140 Degrees F
- Secondary Scale Pressure Measurement - Minimum
- 0 bar
- Operating Temperature - Minimum
- -4 Degrees F
- NEMA Enclosure Rating
- No Enclosure
- Process Media Temperature - Maximum
- 140 Degrees F
- Operating Temperature - Maximum
- 140 Degrees F
- Includes Acid Leak Detection
- No Acid Leak Detection Included
- Seal Process Media Temperature - Minimum
- -160 Degrees C
- Primary Scale Pressure Measurement - Maximum
- 30 psi
- Case Liquid
- None
- Process Media Temperature - Minimum
- -4 Degrees F
- Primary Scale Pressure Measurement - Minimum
- 0 psi
- IP Rating
- IP65
- Seal Process Media Temperature - Maximum
- -10 Degrees C
- Secondary Scale Pressure Measurement - Maximum
- 60 bar
