  5. Industrial Compound Gauge, 30 to 0 to 150 psi, 6 in Dial, 1/4 in NPT, Bottom Location

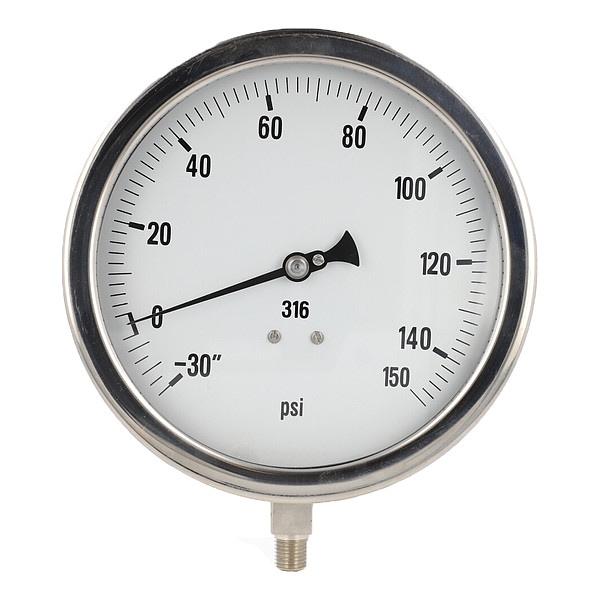

Pic Gauges Industrial Compound Gauge, 30 to 0 to 150 psi, 6 in Dial, 1/4 in NPT, Bottom Location 6001-4LCF - main

Industrial Compound Gauge, 30 to 0 to 150 psi, 6 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 6001-4LCF

  • Zoro # G0057821

product price:  $117.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6001-4LCF
Zoro #
G0057821
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
6 in
Length
8.41"
Case Diameter
6.75 in
Manufacturer Warranty Length
1 yr
Case Depth
2.05 in
Nominal Dial Size
6 in
Nominal Dial Diameter
6 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
6000
Lens Material
Laminated Safety Glass
Primary Pressure Range
30 to 0 to 150
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Required Gauge Adapter
No
Gauge Primary Range Numbered Graduations
30/20
Case Color
Metallic
Smallest Graduation
2 psi, 5 in Hg
Gauge Primary Range Smallest Graduation
5/2
Includes
Vent Plug
Calibration Certificate Included
No
Gauge Special Options
Heavy Duty
Graduations
20 psi, 30 in Hg
Gauge Application
Process
Case Material
Stainless Steel
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Standards
ASME
Connection Type
MNPT
Bezel Material
Stainless Steel
Pointer Characteristics
Adjustable
Sensor Material
316 Stainless Steel
Includes Vent Plug
Yes
Includes Calibration Certificate
No
Freeze Resistant Movement
No
Pressure Range Type
Compound
Gauge Case Liquid
Glycerin
Accuracy Scale
Full Scale
Bezel Mounting Type
Removable
Pointer Material
Aluminum
Vibration Resistance
Liquid-Filled
Includes Mounting Hardware
No
Dry Dampening Feature
None
Pointer Color
Black
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Pressure Gauge Type
Industrial Pressure Gauge
Scale Type
Single
Case Construction
Welded Joint
Primary Scale Numeric Increments
20, 30
Process Connection Gender
Male
Cleaned for Oxygen Service
No
Removable Bezel
Yes
Field Fillable
No
Primary Scale Minor Graduations
2, 5
Dial Color
White
Accuracy Grade
ASME B40.100 Grade 1A
Non-Sparking
No
Maximum Pressure
150 psi
Operating Temperature Range
-30 Degrees to 180 Degrees F
Compatible with Brand
Universal
NEMA Enclosure Rating
No Enclosure
Primary Scale Vacuum Measurement - Maximum
150 psi
Case Liquid
Glycerin
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Process Media Temperature - Minimum
-40 Degrees F
Compatible with Series
6000
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
180 Degrees F
Primary Scale Pressure Measurement - Maximum
150 psi
Secondary Scale Units
bar

Description

Industrial Compound Gauge, Nominal Dial Size 6 in, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Laminated Safety Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 150, Dry Dampening Feature None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
