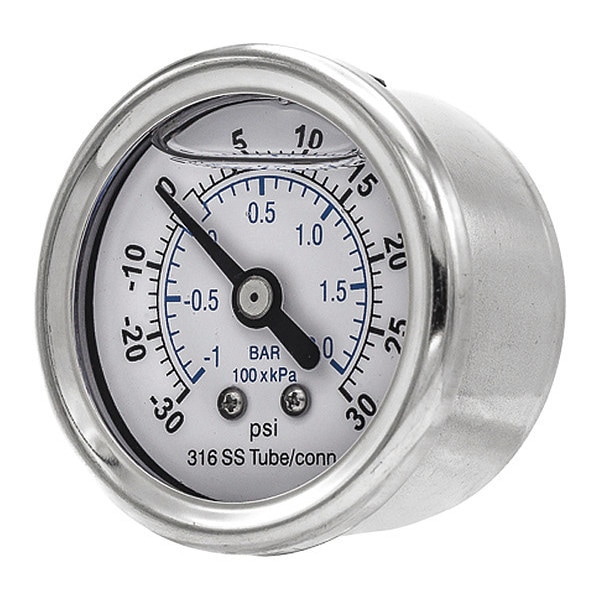

Pic Gauges Industrial Compound Gauge, 30 to 0 to 30 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location PRO-302L-158CC-01 - main

Industrial Compound Gauge, 30 to 0 to 30 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # PRO-302L-158CC-01

  • Zoro # G7286546

product price:  $15.59
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PRO-302L-158CC-01
Zoro #
G7286546
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Nominal Dial Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Plastic
Primary Pressure Range
30 to 0 to 30
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
10/5
Graduations
10 in Hg, 5 psi
Gauge Primary Range Smallest Graduation
10/5
Gauge Filled With
Glycerin
Case Material
Stainless Steel
Case Color
Metallic
Smallest Graduation
1 psi, 2 in Hg
Socket Material
316 Stainless Steel
Includes
Vent Plug
Connection Type
MNPT
Standards
ASME
Scale Type
Dual
Field Fillable
No
Primary Scale Minor Graduations
5, 10
Accuracy Grade
ASME B40.100 Grade A
Cleaned for Oxygen Service
No
Accuracy Scale
Mid-Scale
Pointer Material
Aluminum
Pointer Color
Black
Includes Mounting Hardware
No
Dial Color
White
Vibration Resistance
Liquid-Filled
Bezel Material
Stainless Steel
Bezel Mounting Type
Crimped
Primary Scale Numeric Increments
5, 10
Gauge Case Liquid
Glycerin
Pressure Range Type
Compound
Process Connection Gender
Male
Secondary Pressure Range
0 to 2
Includes Calibration Certificate
No
Non-Sparking
No
Pressure Gauge Type
Industrial Pressure Gauge
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Secondary Scale Units
bar
Includes Vent Plug
No
Removable Bezel
No
Dry Dampening Feature
None
Sensor Material
316 Stainless Steel
Freeze Resistant Movement
No
Operating Temperature Range
-30 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Secondary Scale Vacuum Measurement - Minimum
0 bar
NEMA Enclosure Rating
No Enclosure
Compatible with Series
300
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Minimum
-30 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Secondary Scale Vacuum Measurement - Maximum
2 bar
Process Media Temperature - Minimum
30 Degrees F
Primary Scale Pressure Measurement - Maximum
30 psi
Secondary Scale Pressure Measurement - Maximum
2 bar
Primary Scale Vacuum Measurement - Maximum
30 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
Case Liquid
Glycerin
Compatible with Brand
Universal

Description

Industrial Compound Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
