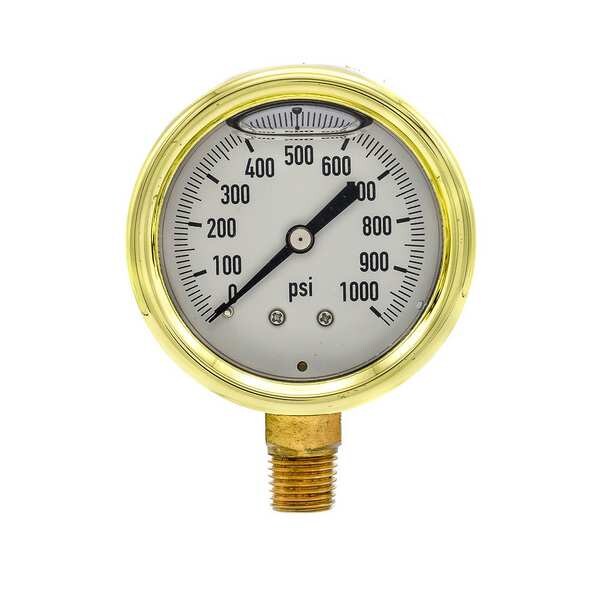

Pic Gauges Industrial Pressure Gauge, 0 to 1,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 601L-254M - main

Industrial Pressure Gauge, 0 to 1,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 601L-254M

  • Zoro # G8655035

product price:  $51.29
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
601L-254M
Zoro #
G8655035
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.32"
Nominal Dial Size
2 1/2 in
Case Diameter
2.58 in
Case Depth
1.49 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Forged Brass
Series
601L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 1,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
10
Smallest Graduation
10 psi
Gauge Filled With
Glycerin
Case Color
Gold
Gauge Application
In Applications Where Vibration or Pulsation is Present
Includes
Vent Plug
Socket Material
Copper Alloy
Case Material
Forged Brass
Standards
ASME
Wetted Materials
Copper
Connection Type
MNPT
Sensor Material
Copper Alloy
Pressure Range Type
Pressure
Primary Scale Minor Graduations
10
Field Fillable
No
Pointer Material
Aluminum
Vibration Resistance
Liquid-Filled
Accuracy Scale
Mid-Scale
Bezel Material
Stainless Steel
Dry Dampening Feature
None
Cleaned for Oxygen Service
No
Pressure Gauge Type
Industrial Pressure Gauge
Removable Bezel
No
Freeze Resistant Movement
No
Includes Vent Plug
Yes
Accuracy Grade
ASME B40.100 Grade A
Non-Sparking
No
Pointer Color
Black
Scale Type
Single
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Case Construction
Corrosion Resistant
Bezel Mounting Type
Fixed
Process Connection Gender
Male
Includes Calibration Certificate
No
Gauge Case Liquid
Glycerin
Includes Mounting Hardware
No
Dial Color
White
Maximum Pressure
1,000 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Units
bar
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Maximum
1,000 psi
Compatible with Brand
Universal
NEMA Enclosure Rating
No Enclosure
Primary Scale Vacuum Measurement - Maximum
1,000 psi
Operating Temperature - Maximum
180 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Compatible with Series
601L
Operating Temperature - Minimum
-30 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Forged Brass, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Gold, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
