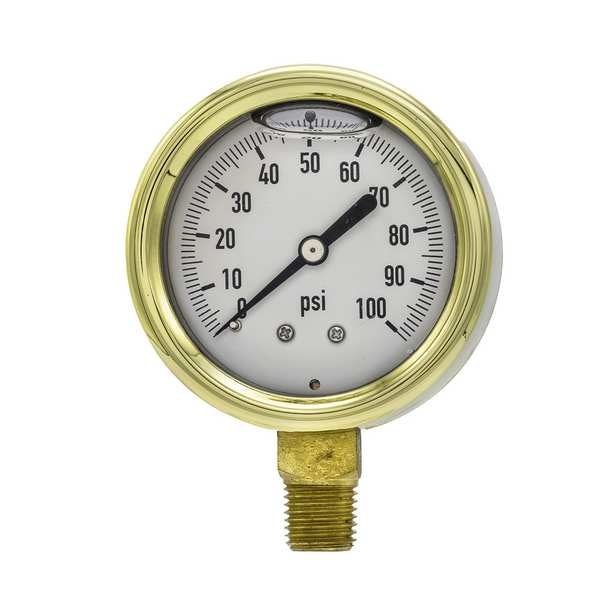

Pic Gauges Industrial Pressure Gauge, 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 601L-254E - main

Industrial Pressure Gauge, 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 601L-254E

  • Zoro # G8655001

product price:  $30.69
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
601L-254E
Zoro #
G8655001
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.32"
Manufacturer Warranty Length
1 yr
Case Diameter
2.58 in
Nominal Dial Size
2 1/2 in
Case Depth
1.49 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Forged Brass
Series
601L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
1 psi
Case Color
Gold
Gauge Primary Range Smallest Graduation
1
Gauge Application
In Applications Where Vibration or Pulsation is Present
Calibration Certificate Included
No
Gauge Filled With
Glycerin
Includes
Vent Plug
Case Material
Forged Brass
Socket Material
Copper Alloy
Wetted Materials
Copper
Standards
ASME
Connection Type
MNPT
Bezel Mounting Type
Fixed
Scale Type
Single
Field Fillable
No
Accuracy Grade
ASME B40.100 Grade A
Includes Mounting Hardware
No
Case Construction
Corrosion Resistant
Accuracy Scale
Mid-Scale
Pointer Material
Aluminum
Bezel Material
Stainless Steel
Process Connection Gender
Male
Non-Sparking
No
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Vibration Resistance
Liquid-Filled
Dial Color
White
Pointer Color
Black
Removable Bezel
No
Includes Calibration Certificate
No
Includes Vent Plug
Yes
Sensor Material
Copper Alloy
Freeze Resistant Movement
No
Cleaned for Oxygen Service
No
Pressure Range Type
Pressure
Primary Scale Minor Graduations
1
Pressure Gauge Type
Industrial Pressure Gauge
Dry Dampening Feature
None
Gauge Case Liquid
Glycerin
Maximum Pressure
100 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Operating Temperature - Maximum
180 Degrees F
NEMA Enclosure Rating
No Enclosure
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Units
bar
Process Media Temperature - Maximum
160 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
100 psi
Primary Scale Pressure Measurement - Maximum
100 psi
Case Liquid
Glycerin
Operating Temperature - Minimum
-30 Degrees F
Compatible with Series
601L

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Forged Brass, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Gold, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
