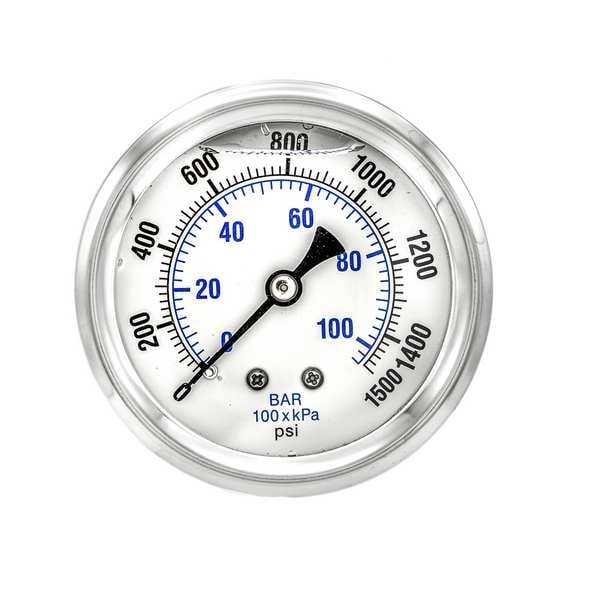

Pic Gauges Industrial Pressure Gauge, 0 to 1,500 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location PRO-202L-254N - main

Industrial Pressure Gauge, 0 to 1,500 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PRO-202L-254N

  • Zoro # G5119278

product price:  $17.45
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-202L-254N
Zoro #
G5119278
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
2.09"
Case Depth
1.21 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
2 1/2 in
Case Diameter
2.65 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
202L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 1,500
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
20
Calibration Certificate Included
No
Case Color
Metallic
Gauge Filled With
Glycerin
Smallest Graduation
20 psi
Gauge Application
General Purpose
Includes
Vent Plug
Socket Material
Copper Alloy
Case Material
Stainless Steel
Connection Type
MNPT
Standards
ASME
Wetted Materials
Copper
Pressure Range Type
Pressure
Accuracy Grade
ASME B40.100 Grade A
Process Connection Gender
Male
Field Fillable
No
Accuracy Scale
Mid-Scale
Secondary Pressure Range
0 to 103
Secondary Scale Units
bar
Dry Dampening Feature
None
Non-Sparking
No
Vibration Resistance
Liquid-Filled
Freeze Resistant Movement
No
Scale Type
Dual
Bezel Material
Stainless Steel
Sensor Material
Copper Alloy
Includes Vent Plug
Yes
Pointer Material
Aluminum
Removable Bezel
No
Cleaned for Oxygen Service
No
Bezel Mounting Type
Fixed
Pointer Color
Black
Primary Scale Minor Graduations
20
Includes Mounting Hardware
No
Gauge Case Liquid
Glycerin
Pressure Gauge Type
Industrial Pressure Gauge
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Dial Color
White
Includes Calibration Certificate
No
Maximum Pressure
1,500 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Pressure Measurement - Maximum
1,500 psi
Case Liquid
Glycerin
Operating Temperature - Minimum
-30 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 bar
Process Media Temperature - Minimum
30 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Maximum
160 Degrees F
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
1,500 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
Compatible with Series
202L
Secondary Scale Pressure Measurement - Maximum
103 bar
Operating Temperature - Maximum
180 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,500, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
