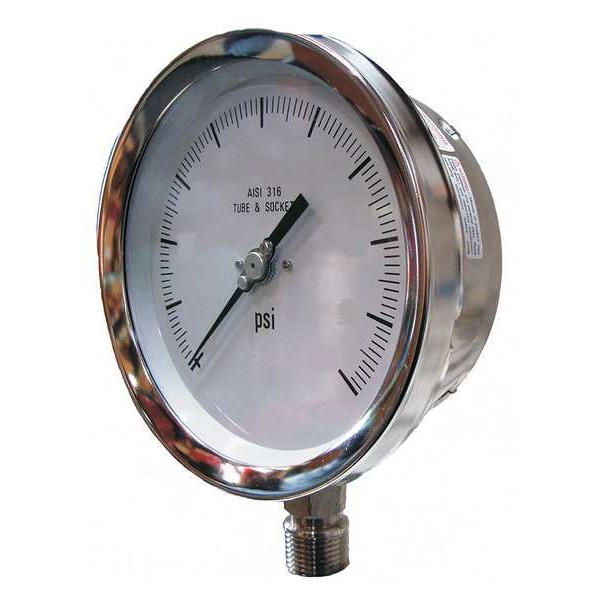

Pic Gauges Industrial Pressure Gauge, 0 to 100 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location 4501-SC-4LE - main

Industrial Pressure Gauge, 0 to 100 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4501-SC-4LE

  • Zoro # G7203296

product price:  $160.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4501-SC-4LE
Zoro #
G7203296
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Length
6.40"
Nominal Dial Size
4 1/2 in
Manufacturer Warranty Length
1 yr
Case Diameter
4.90 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Process Industries
Gauge Case Material
Stainless Steel
Series
4501-SC
Lens Material
Polycarbonate
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
Yes
Gauge Primary Range Smallest Graduation
1
Gauge Primary Range Numbered Graduations
10
For Use With
Heavy Duty Service In Process and Industrial Applications Such As Oil and Gas, Chemical, Petrochemical, Power, Food Processing, Biotechnology
Gauge Application
Process
Calibration Certificate Included
No
Smallest Graduation
1 psi
Includes
Safety Blowout Plug
Case Color
Metallic
Graduations
10 psi
Socket Material
316 Stainless Steel
Case Material
Stainless Steel
Wetted Materials
Stainless Steel
Standards
ASME
Connection Type
MNPT
Includes Calibration Certificate
No
Pressure Gauge Type
Industrial Pressure Gauge
Dial Color
White
Vibration Resistance
None
Accuracy Grade
ASME B40.100 Grade 2A
Accuracy Scale
Full Scale
Cleaned for Oxygen Service
No
Primary Scale Numeric Increments
10
Includes Vent Plug
Yes
Process Connection Gender
Male
Removable Bezel
Yes
Non-Sparking
No
Sensor Material
316 Stainless Steel
Gauge Case Liquid
None
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Includes Mounting Hardware
No
Pressure Range Type
Pressure
Dry Dampening Feature
None
Field Fillable
No
Primary Scale Minor Graduations
1
Freeze Resistant Movement
No
Scale Type
Single
Maximum Pressure
100 psi
Pointer Color
Black
Operating Temperature Range
-30 Degrees to 180 Degrees F
Compatible with Series
4500
Process Media Temperature - Minimum
-30 Degrees F
Operating Temperature - Minimum
-30 Degrees F
NEMA Enclosure Rating
No Enclosure
Primary Scale Pressure Measurement - Maximum
100 psi
Compatible with Brand
Universal
Operating Temperature - Maximum
180 Degrees F
Case Liquid
None
Primary Scale Vacuum Measurement - Maximum
100 psi
Process Media Temperature - Maximum
180 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Minimum
0 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
