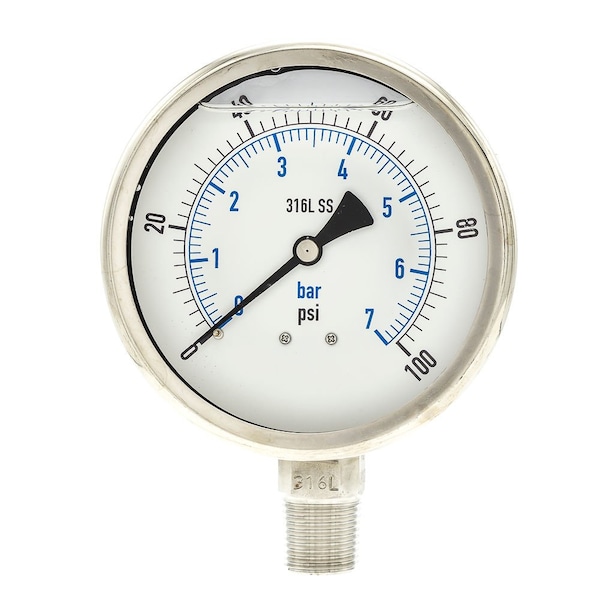

Pic Gauges Industrial Pressure Gauge, 0 to 100 psi, 4 in Dial, 1/2 in NPT, Bottom Location PRO-301L-402E-01 - main

Industrial Pressure Gauge, 0 to 100 psi, 4 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # PRO-301L-402E-01

  • Zoro # G8729481

product price:  $51.25
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-301L-402E-01
Zoro #
G8729481
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
4 in
Length
5.26"
Case Depth
1.74 in
Manufacturer Warranty Length
1 yr
Case Diameter
4.3 in
Nominal Dial Size
4 in
Nominal Dial Diameter
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Metallic
Graduations
20 psi
Gauge Filled With
Glycerin
Gauge Special Options
Heavy Duty
Calibration Certificate Included
No
Gauge Application
In Applications Where Vibration or Pulsation is Present
Gauge Primary Range Numbered Graduations
20
Gauge Primary Range Smallest Graduation
2
Smallest Graduation
2 psi
For Use With
Brass, Industrial Applications, Media Compatible with Copper Alloy
Case Material
Stainless Steel
Socket Material
316 Stainless Steel
Includes
Vent Plug
Standards
ASME
Wetted Materials
Stainless Steel
Connection Type
MNPT
Scale Type
Dual
Accuracy Scale
Mid-Scale
Includes Calibration Certificate
No
Primary Scale Minor Graduations
2
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Dial Face Material
Stainless Steel
Dial Color
White
Vibration Resistance
Liquid-Filled
Pointer Material
Aluminum
Cleaned for Oxygen Service
No
Includes Vent Plug
No
Field Fillable
No
Removable Bezel
No
Pointer Color
Black
Non-Sparking
No
Bezel Material
Stainless Steel
Gauge Case Liquid
Glycerin
Includes Mounting Hardware
No
Pressure Gauge Type
Industrial Pressure Gauge
Primary Scale Numeric Increments
20
Freeze Resistant Movement
No
Secondary Pressure Range
0 to 7
Sensor Material
316 Stainless Steel
Bezel Mounting Type
Fixed
Dry Dampening Feature
None
Secondary Scale Units
bar
Accuracy Grade
ASME B40.100 Grade A
Pressure Range Type
Pressure
Process Connection Gender
Male
Maximum Pressure
100 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi
NEMA Enclosure Rating
No Enclosure
Primary Scale Vacuum Measurement - Maximum
100 psi
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Series
300
Secondary Scale Vacuum Measurement - Minimum
0 bar
Case Liquid
Glycerin
Operating Temperature - Minimum
30 Degrees F
Secondary Scale Pressure Measurement - Maximum
7 bar
Operating Temperature - Maximum
160 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Secondary Scale Vacuum Measurement - Maximum
7 bar
Process Media Temperature - Maximum
160 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
