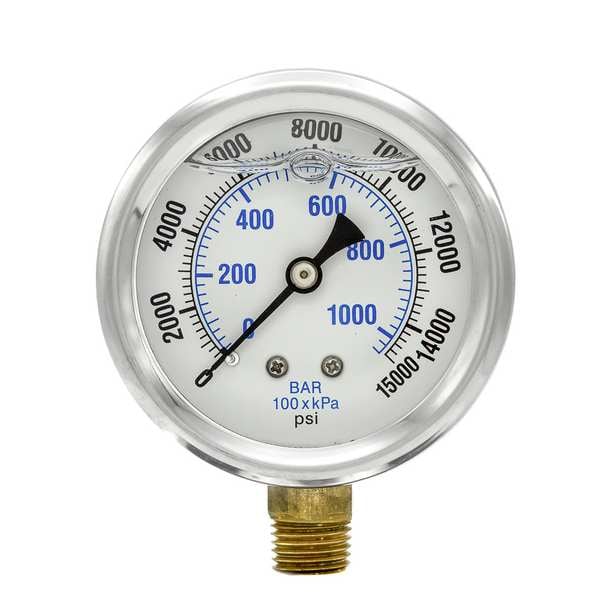

Pic Gauges Industrial Pressure Gauge, 0 to 15,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PRO-201L-254V - main

Industrial Pressure Gauge, 0 to 15,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PRO-201L-254V

  • Zoro # G5119795

product price:  $21.99
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-201L-254V
Zoro #
G5119795
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.30"
Case Depth
1.2 in
Nominal Dial Size
2 1/2 in
Case Diameter
2.65 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
201L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 15,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Application
General Purpose
Gauge Primary Range Smallest Graduation
200
Smallest Graduation
200 psi
Case Color
Metallic
Includes
Vent Plug
Gauge Filled With
Glycerin
Socket Material
Copper Alloy
Case Material
Stainless Steel
Wetted Materials
Copper
Standards
ASME
Connection Type
MNPT
Accuracy Scale
Mid-Scale
Dial Color
White
Includes Mounting Hardware
No
Primary Scale Minor Graduations
200
Non-Sparking
No
Bezel Mounting Type
Fixed
Scale Type
Dual
Pointer Material
Aluminum
Vibration Resistance
Liquid-Filled
Gauge Case Liquid
Glycerin
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Includes Vent Plug
Yes
Process Connection Gender
Male
Secondary Pressure Range
0 to 1,034
Bezel Material
Stainless Steel
Removable Bezel
No
Pressure Gauge Type
Industrial Pressure Gauge
Includes Calibration Certificate
No
Accuracy Grade
ASME B40.100 Grade A
Pointer Color
Black
Freeze Resistant Movement
No
Field Fillable
No
Dry Dampening Feature
None
Pressure Range Type
Pressure
Cleaned for Oxygen Service
No
Sensor Material
Copper Alloy
Secondary Scale Units
bar
Maximum Pressure
15,000 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
1,034 bar
Operating Temperature - Minimum
-30 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 bar
Process Media Temperature - Minimum
30 Degrees F
NEMA Enclosure Rating
No Enclosure
Case Liquid
Glycerin
Operating Temperature - Maximum
180 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Maximum
15,000 psi
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Series
201L
Primary Scale Vacuum Measurement - Maximum
15,000 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 15,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
