Pic Gauges Industrial Pressure Gauge, 0 to 2,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PRO-201L-254O - main

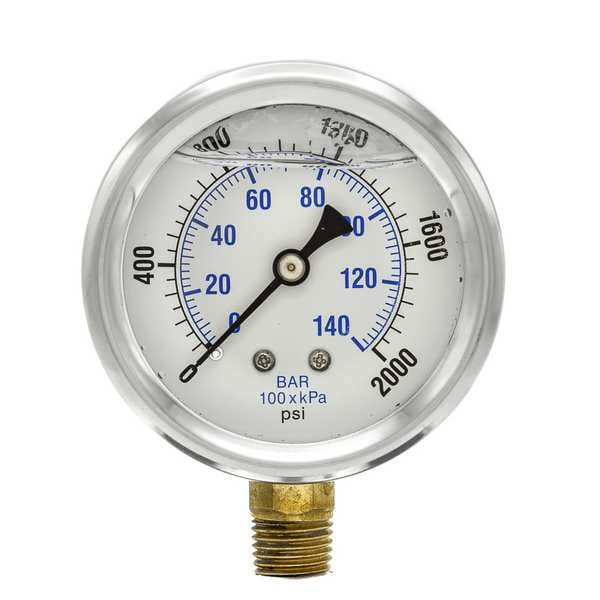

Industrial Pressure Gauge, 0 to 2,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PRO-201L-254O

  • Zoro # G5119856

product price:  $16.39
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-201L-254O
Zoro #
G5119856
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.30"
Manufacturer Warranty Length
1 yr
Case Diameter
2.65 in
Case Depth
1.2 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
201L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 2,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Includes
Vent Plug
Gauge Filled With
Glycerin
Gauge Primary Range Smallest Graduation
40
Smallest Graduation
40 psi
Gauge Application
General Purpose
Calibration Certificate Included
No
Case Color
Metallic
Case Material
Stainless Steel
Socket Material
Copper Alloy
Wetted Materials
Copper
Standards
ASME
Connection Type
MNPT
Bezel Mounting Type
Fixed
Sensor Material
Copper Alloy
Vibration Resistance
Liquid-Filled
Includes Mounting Hardware
No
Includes Vent Plug
Yes
Dry Dampening Feature
None
Accuracy Scale
Mid-Scale
Includes Calibration Certificate
No
Field Fillable
No
Pointer Material
Aluminum
Pressure Range Type
Pressure
Secondary Scale Units
bar
Scale Type
Dual
Secondary Pressure Range
0 to 138
Non-Sparking
No
Process Connection Gender
Male
Primary Scale Minor Graduations
40
Dial Color
White
Bezel Material
Stainless Steel
Freeze Resistant Movement
No
Pointer Color
Black
Removable Bezel
No
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Cleaned for Oxygen Service
No
Accuracy Grade
ASME B40.100 Grade A
Pressure Gauge Type
Industrial Pressure Gauge
Gauge Case Liquid
Glycerin
Maximum Pressure
2000
Operating Temperature Range
30 Degrees to 160 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
180 Degrees F
Compatible with Series
201L
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Vacuum Measurement - Maximum
2,000 psi
Process Media Temperature - Minimum
30 Degrees F
Secondary Scale Pressure Measurement - Maximum
138 bar
Compatible with Brand
Universal
Operating Temperature - Minimum
-30 Degrees F
Primary Scale Pressure Measurement - Maximum
2,000 psi
Case Liquid
Glycerin
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Vacuum Measurement - Minimum
0 psi
NEMA Enclosure Rating
No Enclosure

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 2,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
