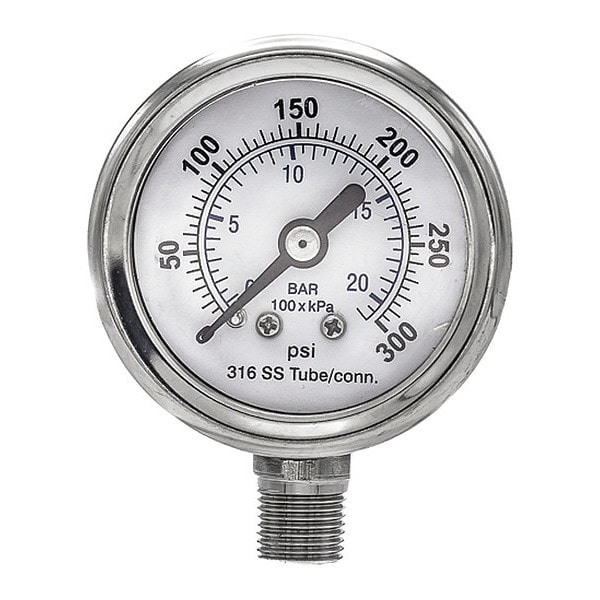

Pic Gauges Industrial Pressure Gauge, 0 to 300 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location PRO-301D-158H-01 - main

Industrial Pressure Gauge, 0 to 300 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

  • Mfr # PRO-301D-158H-01

  • Zoro # G7287219

product price:  $15.15
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-301D-158H-01
Zoro #
G7287219
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
1 1/2 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
50
Includes
Vent Plug
Graduations
50 psi
Socket Material
316 Stainless Steel
Gauge Primary Range Numbered Graduations
50
Case Material
Stainless Steel
Gauge Secondary Range Values
0 to 20
Case Color
Metallic
Calibration Certificate Included
No
Gauge Special Options
Field Liquid Fillable
Connection Type
MNPT
Standards
ASME
Gauge Case Liquid
None
Dry Dampening Feature
None
Non-Sparking
No
Includes Mounting Hardware
No
Primary Scale Numeric Increments
50
Secondary Pressure Range
0 to 21
Removable Bezel
No
Bezel Mounting Type
Fixed
Primary Scale Minor Graduations
50
Pointer Material
Aluminum
Process Connection Gender
Male
Accuracy Scale
Mid-Scale
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Field Fillable
Yes
Vibration Resistance
Field-Fillable
Pressure Range Type
Pressure
Scale Type
Dual
Dial Color
White
Secondary Scale Units
bar
Cleaned for Oxygen Service
No
Bezel Material
Stainless Steel
Pressure Gauge Type
Industrial Pressure Gauge
Sensor Material
316 Stainless Steel
Pointer Color
Black
Accuracy Grade
ASME B40.100 Grade A
Dial Face Material
Stainless Steel
Freeze Resistant Movement
No
Includes Calibration Certificate
No
Includes Vent Plug
No
Operating Temperature Range
-30 Degrees to 180 Degrees F
Primary Scale Vacuum Measurement - Maximum
300 psi
Process Media Temperature - Minimum
-30 Degrees F
Compatible with Brand
Universal
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 bar
Process Media Temperature - Maximum
180 Degrees F
Case Liquid
None
Primary Scale Pressure Measurement - Maximum
300 psi
Primary Scale Vacuum Measurement - Minimum
0 psi
NEMA Enclosure Rating
No Enclosure
Secondary Scale Vacuum Measurement - Maximum
20 bar
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
21 bar
Compatible with Series
300
Secondary Scale Pressure Measurement - Minimum
0 bar

Description

Industrial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
