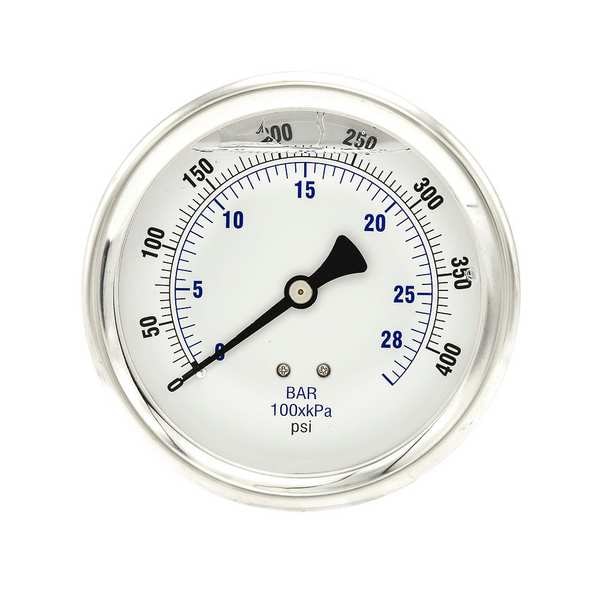

Pic Gauges Industrial Pressure Gauge, 0 to 400 psi, 4 in Dial, 1/4 in NPT, Center Back Location 202L-404I - main

Industrial Pressure Gauge, 0 to 400 psi, 4 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 202L-404I

  • Zoro # G8654667

product price:  $68.75
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
202L-404I
Zoro #
G8654667
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Length
3.15"
Case Depth
1.78 in
Nominal Dial Size
4 in
Case Diameter
4.29 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
202L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 400
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Metallic
Gauge Filled With
Glycerin
Smallest Graduation
5 psi
Gauge Application
In Applications Where Vibration or Pulsation is Present
Calibration Certificate Included
No
Includes
Vent Plug
Gauge Primary Range Smallest Graduation
5
Case Material
Stainless Steel
Socket Material
Copper Alloy
Connection Type
MNPT
Wetted Materials
Copper
Standards
ASME
Includes Calibration Certificate
No
Pointer Color
Black
Field Fillable
No
Includes Mounting Hardware
No
Gauge Case Liquid
Glycerin
Dial Color
White
Case Construction
Stainless Steel
Accuracy Scale
Full Scale
Non-Sparking
No
Freeze Resistant Movement
No
Sensor Material
Copper Alloy
Pressure Range Type
Pressure
Removable Bezel
No
Primary Scale Minor Graduations
5
Scale Type
Dual
Bezel Mounting Type
Fixed
Vibration Resistance
Liquid-Filled
Pressure Gauge Type
Industrial Pressure Gauge
Process Connection Gender
Male
Pointer Material
Aluminum
Includes Vent Plug
Yes
Cleaned for Oxygen Service
No
Secondary Scale Units
bar
Dial Face Material
Aluminum
Bezel Material
Stainless Steel
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Dry Dampening Feature
None
Accuracy Grade
ASME B40.100 Grade 1A
Secondary Pressure Range
0 to 27.6
Maximum Pressure
400
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
27.6 bar
Secondary Scale Vacuum Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Maximum
400 psi
Primary Scale Vacuum Measurement - Minimum
0 psi
Compatible with Series
202L
Process Media Temperature - Minimum
30 Degrees F
NEMA Enclosure Rating
No Enclosure
Case Liquid
Glycerin
Process Media Temperature - Maximum
160 Degrees F
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
400 psi
Operating Temperature - Minimum
30 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Operating Temperature - Maximum
160 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
