Pic Gauges Industrial Pressure Gauge, 0 to 5,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location PRO-202L-254R - main

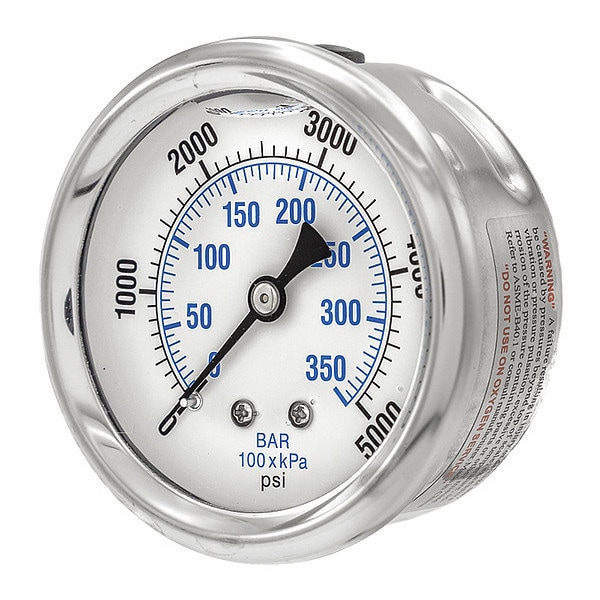

Industrial Pressure Gauge, 0 to 5,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PRO-202L-254R

  • Zoro # G5119241

product price:  $15.99
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-202L-254R
Zoro #
G5119241
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
2.09"
Nominal Dial Size
2 1/2 in
Case Diameter
2.65 in
Manufacturer Warranty Length
1 yr
Case Depth
1.21 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
202L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 5,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Smallest Graduation
100 psi
Gauge Application
General Purpose
Gauge Filled With
Glycerin
Gauge Primary Range Smallest Graduation
100
Includes
Vent Plug
Case Color
Metallic
Socket Material
Copper Alloy
Case Material
Stainless Steel
Standards
ASME
Connection Type
MNPT
Wetted Materials
Copper
Primary Scale Minor Graduations
100
Bezel Material
Stainless Steel
Removable Bezel
No
Includes Mounting Hardware
No
Pointer Color
Black
Accuracy Grade
ASME B40.100 Grade A
Process Connection Gender
Male
Dry Dampening Feature
None
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Non-Sparking
No
Includes Vent Plug
Yes
Gauge Case Liquid
Glycerin
Pressure Range Type
Pressure
Sensor Material
Copper Alloy
Includes Calibration Certificate
No
Pointer Material
Aluminum
Accuracy Scale
Mid-Scale
Scale Type
Dual
Secondary Scale Units
bar
Freeze Resistant Movement
No
Dial Color
White
Pressure Gauge Type
Industrial Pressure Gauge
Vibration Resistance
Liquid-Filled
Bezel Mounting Type
Fixed
Field Fillable
No
Secondary Pressure Range
0 to 345
Cleaned for Oxygen Service
No
Maximum Pressure
5000
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Process Media Temperature - Minimum
30 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Primary Scale Vacuum Measurement - Maximum
5,000 psi
Secondary Scale Pressure Measurement - Maximum
345 bar
Primary Scale Pressure Measurement - Maximum
5,000 psi
Compatible with Brand
Universal
Secondary Scale Vacuum Measurement - Minimum
0 bar
Compatible with Series
202L
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Maximum
160 Degrees F
Case Liquid
Glycerin
Operating Temperature - Maximum
180 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 5,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
