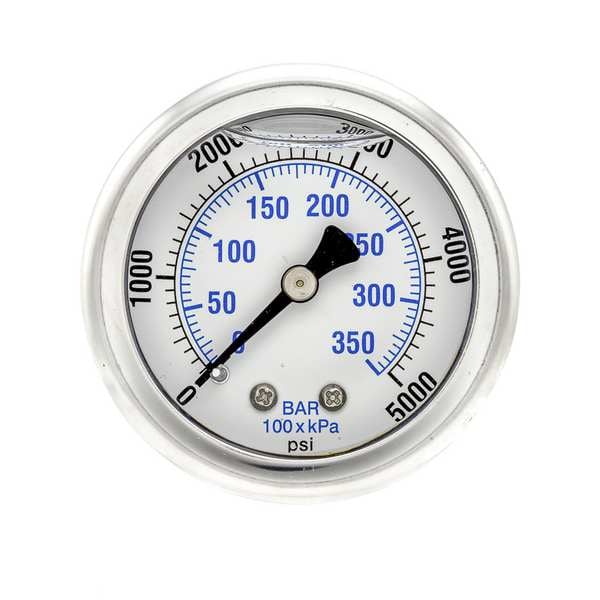

Pic Gauges Industrial Pressure Gauge, 0 to 5,000 psi, 2 in Dial, 1/4 in NPT, Center Back Location 202L-204R - main

Industrial Pressure Gauge, 0 to 5,000 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 202L-204R

  • Zoro # G5119567

product price:  $22.29
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
202L-204R
Zoro #
G5119567
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Length
2.08"
Case Diameter
2.28 in
Case Depth
1.18 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
202L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 5,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Includes
Vent Plug
Calibration Certificate Included
No
Case Color
Metallic
Gauge Application
Corrosion-Resistant Case
Smallest Graduation
100 psi
Gauge Filled With
Glycerin
Gauge Primary Range Smallest Graduation
100
Case Material
Stainless Steel
Socket Material
Copper Alloy
Wetted Materials
Copper
Connection Type
MNPT
Standards
ASME
Non-Sparking
No
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Accuracy Scale
Mid-Scale
Primary Scale Minor Graduations
100
Gauge Case Liquid
Glycerin
Removable Bezel
No
Freeze Resistant Movement
No
Includes Calibration Certificate
No
Accuracy Grade
ASME B40.100 Grade B
Pointer Color
Black
Bezel Mounting Type
Fixed
Dial Color
White
Dry Dampening Feature
None
Pressure Gauge Type
Industrial Pressure Gauge
Cleaned for Oxygen Service
No
Includes Mounting Hardware
No
Case Construction
Stainless Steel
Secondary Scale Units
bar
Secondary Pressure Range
0 to 345 bar
Pointer Material
Aluminum
Dial Face Material
Aluminum
Field Fillable
No
Pressure Range Type
Pressure
Scale Type
Dual
Vibration Resistance
Liquid-Filled
Includes Vent Plug
Yes
Bezel Material
Stainless Steel
Sensor Material
Copper Alloy
Process Connection Gender
Male
Maximum Pressure
5000
Operating Temperature Range
30 Degrees to 160 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
30 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Maximum
5,000 psi
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
Glycerin
Secondary Scale Vacuum Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Maximum
5,000 psi
NEMA Enclosure Rating
No Enclosure
Secondary Scale Pressure Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Maximum
345 bar
Compatible with Series
202L

Description

Industrial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 5,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
