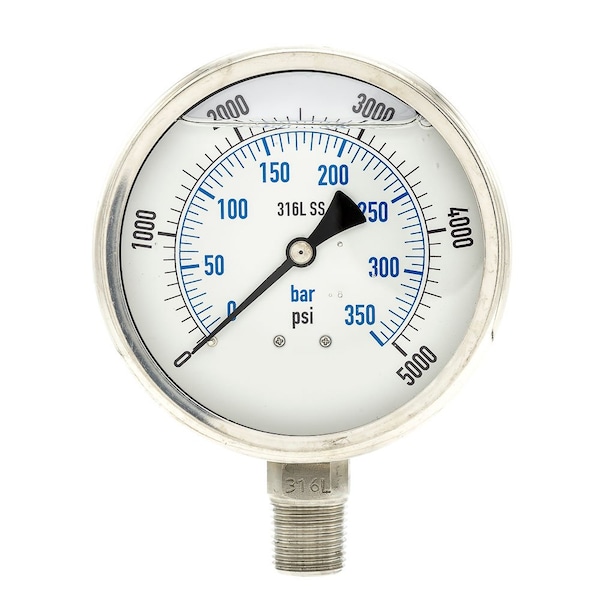

Pic Gauges Industrial Pressure Gauge, 0 to 5,000 psi, 4 in Dial, 1/2 in NPT, Bottom Location PRO-301L-402R-01 - main

Industrial Pressure Gauge, 0 to 5,000 psi, 4 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # PRO-301L-402R-01

  • Zoro # G8729551

product price:  $72.89
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-301L-402R-01
Zoro #
G8729551
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
4 in
Length
5.26"
Case Diameter
4.3 in
Nominal Dial Size
4 in
Case Depth
1.74 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
0 to 5,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Filled With
Glycerin
Gauge Application
In Applications Where Vibration or Pulsation is Present
Gauge Special Options
Heavy Duty
Calibration Certificate Included
No
Smallest Graduation
100 psi
Gauge Primary Range Numbered Graduations
1000
For Use With
Brass, Industrial Applications, Media Compatible with Copper Alloy
Gauge Primary Range Smallest Graduation
100
Graduations
1000 psi
Case Color
Metallic
Socket Material
316 Stainless Steel
Includes
Vent Plug
Case Material
Stainless Steel
Standards
ASME
Wetted Materials
Stainless Steel
Connection Type
MNPT
Non-Sparking
No
Includes Vent Plug
No
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Field Fillable
No
Primary Scale Numeric Increments
1,000
Sensor Material
316 Stainless Steel
Gauge Case Liquid
Glycerin
Accuracy Grade
ASME B40.100 Grade A
Cleaned for Oxygen Service
No
Pointer Material
Aluminum
Pressure Gauge Type
Industrial Pressure Gauge
Bezel Mounting Type
Fixed
Scale Type
Dual
Dry Dampening Feature
None
Accuracy Scale
Mid-Scale
Dial Face Material
Stainless Steel
Includes Calibration Certificate
No
Pointer Color
Black
Secondary Pressure Range
0 to 345
Vibration Resistance
Liquid-Filled
Includes Mounting Hardware
No
Dial Color
White
Removable Bezel
No
Pressure Range Type
Pressure
Secondary Scale Units
bar
Freeze Resistant Movement
No
Process Connection Gender
Male
Bezel Material
Stainless Steel
Primary Scale Minor Graduations
100
Maximum Pressure
5000
Operating Temperature Range
30 Degrees to 160 Degrees F
Compatible with Brand
Universal
Secondary Scale Vacuum Measurement - Maximum
350 bar
Compatible with Series
300
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
345 bar
NEMA Enclosure Rating
No Enclosure
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Minimum
30 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Vacuum Measurement - Maximum
5,000 psi
Primary Scale Pressure Measurement - Maximum
5,000 psi
Case Liquid
Glycerin
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
30 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 bar

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 5,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
