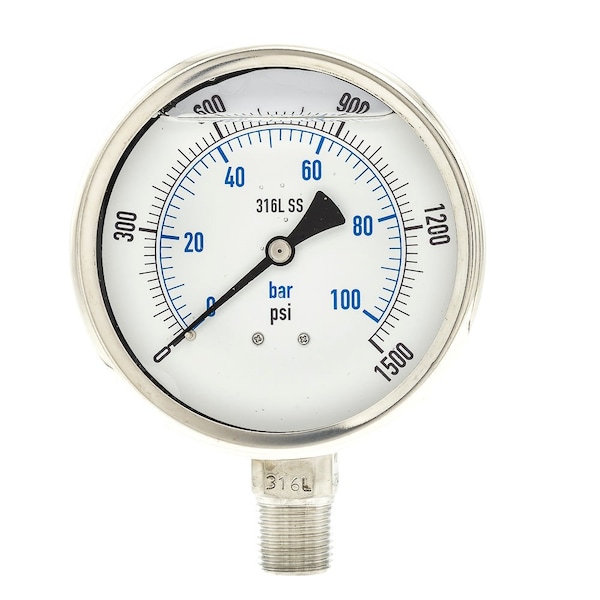

Industrial Pressure Gauge, 0 to 1,500 psi, 4 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # PRO-301L-402N-01

  • Zoro # G9685365

product price:
$
42.89
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PRO-301L-402N-01
Zoro #
G9685365
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
4 in
Length
5.26"
Case Depth
1.74 in
Case Diameter
4.3 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
4 in
Nominal Dial Diameter
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
0 to 1,500
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
20 psi
Gauge Special Options
Heavy Duty
Gauge Filled With
Glycerin
Gauge Application
In Applications Where Vibration or Pulsation is Present
Gauge Primary Range Numbered Graduations
200
Gauge Primary Range Smallest Graduation
20
Graduations
200 psi
For Use With
Brass, Industrial Applications, Media Compatible with Copper Alloy
Calibration Certificate Included
No
Case Color
Metallic
Socket Material
316 Stainless Steel
Includes
Vent Plug
Case Material
Stainless Steel
Connection Type
MNPT
Wetted Materials
Stainless Steel
Standards
ASME
Secondary Pressure Range
0 to 103
Field Fillable
No
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Bezel Material
Stainless Steel
Dry Dampening Feature
None
Sensor Material
316 Stainless Steel
Gauge Case Liquid
Glycerin
Pressure Range Type
Pressure
Scale Type
Dual
Dial Color
White
Cleaned for Oxygen Service
No
Pointer Material
Aluminum
Pointer Color
Black
Accuracy Scale
Mid-Scale
Process Connection Gender
Male
Primary Scale Minor Graduations
20
Secondary Scale Units
bar
Vibration Resistance
Liquid-Filled
Includes Mounting Hardware
No
Freeze Resistant Movement
No
Accuracy Grade
ASME B40.100 Grade A
Removable Bezel
No
Includes Vent Plug
No
Bezel Mounting Type
Fixed
Pressure Gauge Type
Industrial Pressure Gauge
Non-Sparking
No
Includes Calibration Certificate
No
Primary Scale Numeric Increments
200
Dial Face Material
Stainless Steel
Maximum Pressure
1,500 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Secondary Scale Vacuum Measurement - Maximum
100 bar
Operating Temperature - Maximum
160 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
1,500 psi
Operating Temperature - Minimum
30 Degrees F
Case Liquid
Glycerin
NEMA Enclosure Rating
No Enclosure
Secondary Scale Pressure Measurement - Maximum
103 bar
Secondary Scale Vacuum Measurement - Minimum
0 bar
Compatible with Brand
Universal
Process Media Temperature - Maximum
160 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Compatible with Series
300
Secondary Scale Pressure Measurement - Minimum
0 bar

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,500, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
