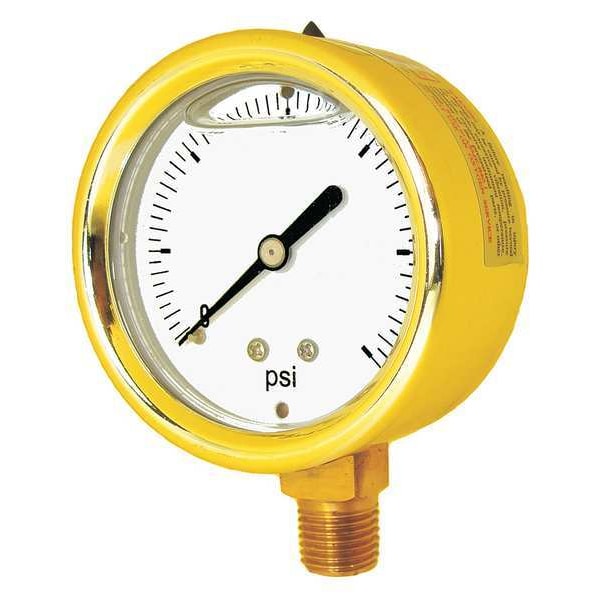

Pic Gauges Industrial Pressure Gauge, 0 to 600 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 601L-254K - main

Industrial Pressure Gauge, 0 to 600 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 601L-254K

  • Zoro # G6894474

product price:  $27.69
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
601L-254K
Zoro #
G6894474
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.32"
Manufacturer Warranty Length
1 yr
Case Depth
1.49 in
Case Diameter
2.58 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Forged Brass
Series
601L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 600
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Includes
Vent Plug
Smallest Graduation
5 psi
Case Color
Gold
Gauge Filled With
Glycerin
Gauge Application
In Applications Where Vibration or Pulsation is Present
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
5
For Use With
Heavy Duty Applications with Media Not Corrosive to Brass, Oil and Gas
Graduations
50 psi
Case Material
Forged Brass
Socket Material
Copper Alloy
Standards
ASME
Connection Type
MNPT
Wetted Materials
Copper
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Includes Calibration Certificate
No
Freeze Resistant Movement
No
Gauge Case Liquid
Glycerin
Dial Color
White
Non-Sparking
No
Pointer Color
Black
Pressure Gauge Type
Industrial Pressure Gauge
Removable Bezel
No
Bezel Material
Stainless Steel
Includes Vent Plug
Yes
Sensor Material
Copper Alloy
Accuracy Grade
ASME B40.100 Grade A
Case Construction
Corrosion Resistant
Cleaned for Oxygen Service
No
Compatible Process Media
Gas, Oil
Accuracy Scale
Mid-Scale
Scale Type
Single
Process Connection Gender
Male
Vibration Resistance
Liquid-Filled
Pressure Range Type
Pressure
Pointer Material
Aluminum
Includes Mounting Hardware
No
Field Fillable
No
Dry Dampening Feature
None
Primary Scale Minor Graduations
5
Bezel Mounting Type
Fixed
Maximum Pressure
600
Operating Temperature Range
30 Degrees to 160 Degrees F
Compatible with Series
601L
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
600 psi
Compatible with Brand
Universal
Case Liquid
Glycerin
Process Media Temperature - Minimum
-30 Degrees F
NEMA Enclosure Rating
No Enclosure
Primary Scale Vacuum Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Maximum
600 psi
Process Media Temperature - Maximum
160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Forged Brass, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Gold, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 600, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
