  5. Panel-Mount Pressure Gauge, 0 to 300 psi, 2 1/2 in Dial, 1/8 in NPT, Center Back Location

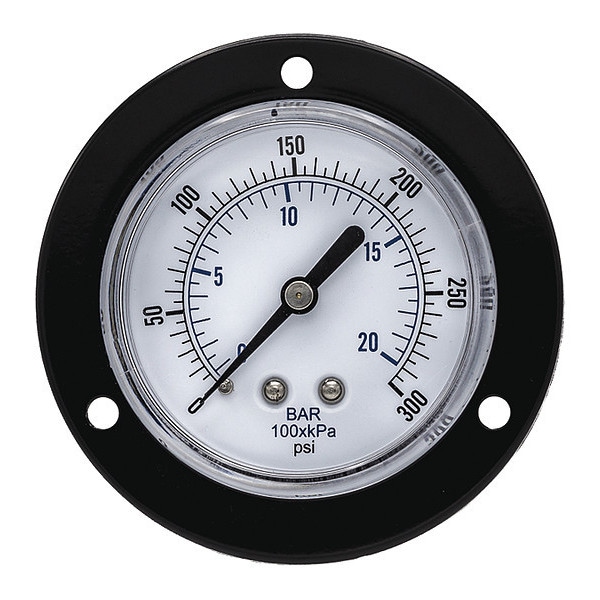

Pic Gauges Panel-Mount Pressure Gauge, 0 to 300 psi, 2 1/2 in Dial, 1/8 in NPT, Center Back Location 104D-258H - main

Panel-Mount Pressure Gauge, 0 to 300 psi, 2 1/2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # 104D-258H

  • Zoro # G7287578

product price:  $11.65
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
104D-258H
Zoro #
G7287578
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
2 1/2 in
Case Depth
1.12 in
Flange Diameter
3.47 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Case Diameter
2.68 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
104D
Lens Material
Plastic
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
50
Calibration Certificate Included
No
Case Material
Stainless Steel
Gauge Primary Range Numbered Graduations
50
Case Color
Metallic
Socket Material
Copper Alloy
Gauge Application
Front Flange
Gauge Secondary Range Values
0 to 20
Includes
Front Flange
Graduations
50 psi
Connection Type
MNPT
Standards
ASME
Sensor Material
Copper Alloy
Includes Calibration Certificate
No
Scale Type
Dual
Ambient Operating Temperature Range
-50 Degrees to 160 Degrees F
Dial Color
White
Bezel Mounting Type
Fixed
Secondary Pressure Range
0 to 21
Non-Sparking
No
Accuracy Grade
ASME B40.100 Grade B
Includes Vent Plug
No
Secondary Scale Units
bar
Vibration Resistance
None
Primary Scale Minor Graduations
50
Gauge Case Liquid
None
Process Connection Gender
Male
Bezel Material
Chrome Plated Steel
Includes Mounting Hardware
No
Field Fillable
No
Cleaned for Oxygen Service
No
Pressure Range Type
Pressure
Accuracy Scale
Mid-Scale
Freeze Resistant Movement
No
Dial Face Material
Aluminum
Removable Bezel
No
Dry Dampening Feature
None
Pointer Color
Black
Pressure Gauge Type
Industrial Pressure Gauge
Pointer Material
Aluminum
Operating Temperature Range
-50 Degrees to 160 Degrees F
Secondary Scale Pressure Measurement - Maximum
21 bar
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Maximum
160 Degrees F
Secondary Scale Vacuum Measurement - Maximum
20 bar
Case Liquid
None
Compatible with Series
104D
Secondary Scale Vacuum Measurement - Minimum
0 bar
Process Media Temperature - Minimum
-30 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Maximum
180 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
300 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Maximum
300 psi
Operating Temperature - Minimum
-50 Degrees F

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
