  5. Panel-Mount Vacuum Gauge, 30 to 0 psi, 2 1/2 in Dial, 1/8 in NPT, Center Back Location

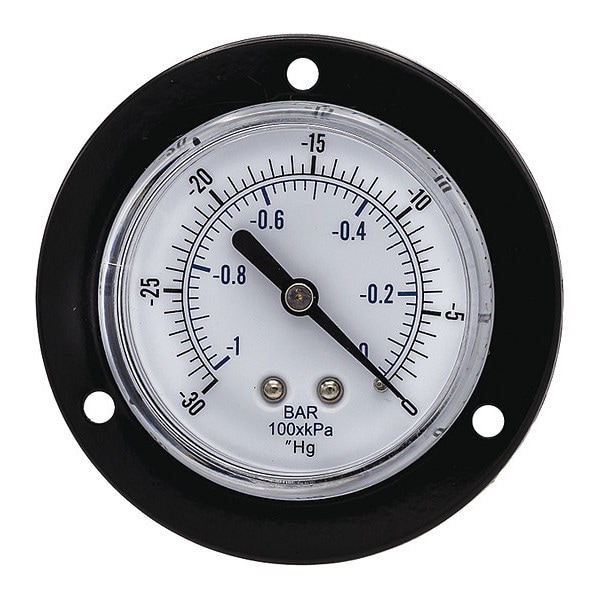

Pic Gauges Panel-Mount Vacuum Gauge, 30 to 0 psi, 2 1/2 in Dial, 1/8 in NPT, Center Back Location 104D-258A - main

Panel-Mount Vacuum Gauge, 30 to 0 psi, 2 1/2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # 104D-258A

  • Zoro # G7287377

product price:  $10.69
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
104D-258A
Zoro #
G7287377
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Case Diameter
2.68 in
Manufacturer Warranty Length
1 yr
Case Depth
1.12 in
Flange Diameter
3.47 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Panel-Mount Vacuum Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
104D
Lens Material
Plastic
Primary Pressure Range
30 to 0
Primary Scale Units
in Hg
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Graduations
5 psi
Socket Material
Copper Alloy
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
5
Gauge Primary Range Smallest Graduation
5
Gauge Application
Front Flange
Gauge Secondary Range Values
-1 to 0
Case Color
Metallic
Smallest Graduation
0.5 in Hg/0.02 Bar
Includes
Front Flange
Case Material
Stainless Steel
Connection Type
MNPT
Standards
ASME
Field Fillable
No
Non-Sparking
No
Sensor Material
Brass
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-50 Degrees to 160 Degrees F
Bezel Mounting Type
Removable
Primary Scale Minor Graduations
5
Removable Bezel
No
Freeze Resistant Movement
No
Dial Face Material
Aluminum
Gauge Case Liquid
None
Process Connection Gender
Male
Secondary Scale Units
bar
Dial Color
White
Scale Type
Dual
Secondary Pressure Range
0 to 1
Pressure Gauge Type
Industrial Pressure Gauge
Includes Mounting Hardware
No
Pointer Color
Black
Pressure Range Type
Vacuum
Accuracy Scale
Mid-Scale
Cleaned for Oxygen Service
No
Bezel Material
Chrome Plated Steel
Accuracy Grade
ASME B40.100 Grade B
Includes Vent Plug
No
Dry Dampening Feature
None
Vibration Resistance
None
Pointer Material
Aluminum
Operating Temperature Range
-50 Degrees to 160 Degrees F
Secondary Scale Pressure Measurement - Maximum
1 bar
Case Liquid
None
Secondary Scale Pressure Measurement - Minimum
0 bar
Compatible with Series
104D
Primary Scale Vacuum Measurement - Minimum
0 in Hg
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Minimum
-30 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Primary Scale Pressure Measurement - Minimum
-30 psi
Process Media Temperature - Maximum
180 Degrees F
Secondary Scale Vacuum Measurement - Maximum
0 bar
Secondary Scale Vacuum Measurement - Minimum
0 bar
Operating Temperature - Maximum
160 Degrees F
Primary Scale Vacuum Measurement - Maximum
0 psi
Primary Scale Pressure Measurement - Maximum
0 psi
Compatible with Brand
Universal

Description

Panel-Mount Vacuum Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
