Compare

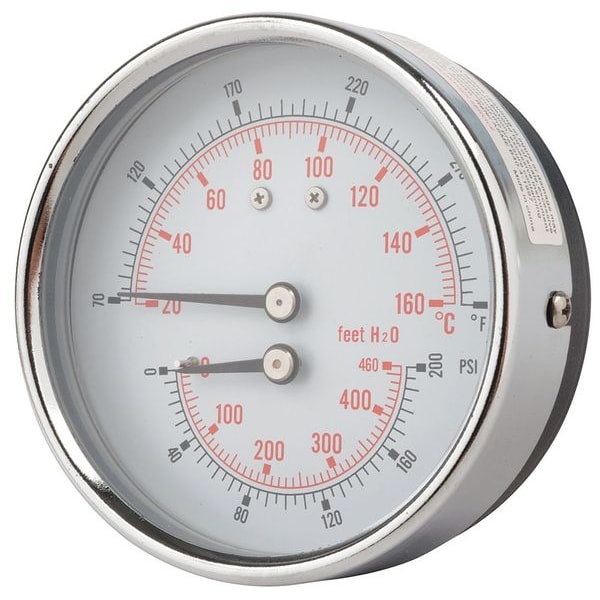

Round Boiler Gauge, 0 to 200 psi, 1/2 in MNPT, Steel, Silver

Mfr # TRI-HD-302R-G
Zoro # G7000427

$47.45

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Accuracy +/-3-2-3%
Application Boilers
Gauge Primary Range Values 0 to 200
Gauge Primary Range Units psi
Gauge Connection Type MNPT

See all product information

Brand Pic Gauges
MFR # TRI-HD-302R-G
Zoro # G7000427
Country of Origin China
Category Pressure Gauges

Dimensions

Gauge Connection Size	1/2 in
Boiler Gauge Nominal Size	3 in
Stem Length (In.)	2
Boiler Gauge Stem Length	2.0 in
Manufacturers Warranty Length	1 yr Limited
Boiler Gauge Stem Extension Length	0.32 in
Stem Insertion Length	2 in
Process Connection Size	1/2 in
Case Diameter	3.21 in
Case Height	3.21 in
Stem Diameter	0.32 in
Case Depth	1.29 in
Nominal Dial Size	3 in

Details

Item	Round Boiler Gauge
Accuracy	+/-3-2-3%
Application	Boilers
Gauge Primary Range Values	0 to 200
Gauge Primary Range Units	psi
Gauge Connection Type	MNPT
Basic Gauge Case Material	Steel
Case Color	Silver
Case Material	Steel
Boiler Gauge Temp. Range - F	80 Degrees to 320 Degrees
Basic Gauge Lens Material	Plastic
Boiler Gauge Type	Round Boiler Gauge
Socket Material	Copper Alloy
Stem Extension (In.)	0.32
Window	Plastic
Tube Material	Copper Alloy
Temp. Range (C)	20 Degrees to 160 Degrees
Gauge Connection Location	Center Back
Gauge Accuracy	+/-3-2-3%
Basic Gauge Wetted Parts	Copper
Boiler Gauge Temp. Range (F)	80 Degrees to 320 Degrees
Gauge Case Material	Steel
Series	TRI-HD
Secondary Scale Units	ft wc
Temperature Range °C	20 Degrees to 160 Degrees C
Stem Material	Copper Alloy
Scale Type	Dual
Temperature Range °F	70 Degrees to 320 Degrees F
Pressure Gauge Type	Tridicator Boiler Gauge
Sensor Material	Copper Alloy
Lens Material	Glass
Neck Extension	0.32 in
Pressure Range Type	Pressure
Accuracy Scale	Mid-Scale
Pressure Accuracy	+/-3-2-3%
Primary Pressure Range	0 to 200
Case Shape	Round
Pointer Color	Black
Hazardous Location Rating	Not Rated
Pointer Material	Aluminum
Secondary Pressure Range	0 to 450
Process Connection Type	NPT
Process Connection Location	Center Back
Temperature Accuracy	+/-3-2-3%
Temperature Scale Units	Degrees C, Degrees F
Dial Color	White
Ambient Operating Temperature Range	-30 Degrees to 180 Degrees F
Compatible Process Media	Water
Accuracy Grade	ASME B40.100 Grade B
Process Connection Gender	Male
Primary Scale Units	psi
Temperature Range Â°C	20 Degrees to 160 Degrees C
Temperature Range Â°F	70 Degrees to 320 Degrees F

Description

Round Boiler Gauge, Boiler Gauge Nominal Size 3 in, Gauge Connection Location Center Back, Gauge Connection Type MNPT, Gauge Connection Size 1/2 in, 0 to 200, psi, Gauge Accuracy +/-3-2-3 Percent, Basic Gauge Case Material Steel, Basic Gauge Wetted Parts Copper, Basic Gauge Lens Material Plastic, 80 Degrees to 320 Degrees Boiler Gauge Temp. Range - F, Temp. Range (C) 20 Degrees to 160 Degrees , Case Material Steel, Case Color Silver, Socket Material Copper Alloy, Tube Material Copper Alloy
