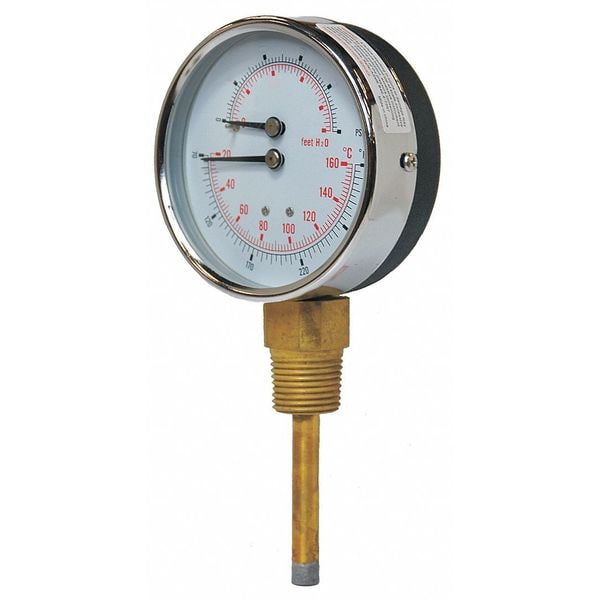

Round Boiler Gauge, 0 to 100 psi, 1/2 in MNPT, Steel, Silver

  • Mfr # TRI-HD-302L-E

  • Zoro # G7208083

product price:
$
42.99
/ea

Key Features

Accuracy
+/-3-2-3%
Application
Boilers
Gauge Primary Range Values
0 to 100
Gauge Primary Range Units
psi
Gauge Connection Type
MNPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TRI-HD-302L-E
Zoro #
G7208083
UPC #
-
Country of Origin
China

Dimensions

Gauge Connection Size
1/2 in
Stem Length (In.)
2
Boiler Gauge Nominal Size
3 in
Boiler Gauge Stem Length
2.0 in
Boiler Gauge Stem Extension Length
0.32 in
Manufacturers Warranty Length
1 yr Limited
Nominal Dial Size
3 in
Case Diameter
3.21 in
Case Depth
1.29 in
Case Height
3.21 in
Stem Diameter
0.32 in
Process Connection Size
1/2 in
Stem Insertion Length
2 in
Nominal Dial Diameter
3 in
Neck Extension Length
0.32 in

Details

Accuracy
+/-3-2-3%
Application
Boilers
Gauge Primary Range Values
0 to 100
Gauge Primary Range Units
psi
Gauge Connection Type
MNPT
Basic Gauge Case Material
Steel
Case Color
Silver
Case Material
Steel
Gauge Connection Location
Bottom
Boiler Gauge Type
Round Boiler Gauge
Stem Extension (In.)
0.32
Boiler Gauge Temp. Range - F
80 Degrees to 320 Degrees
Socket Material
Copper Alloy
Window
Plastic
Basic Gauge Lens Material
Plastic
Gauge Accuracy
+/-3-2-3%
Boiler Gauge Temp. Range (F)
80 Degrees to 320 Degrees
Basic Gauge Wetted Parts
Copper
Tube Material
Copper Alloy
Temp. Range (C)
20 Degrees to 160 Degrees
Item
Round Boiler Gauge
Series
TRI-HD
Gauge Case Material
Steel
Hazardous Location Rating
Not Rated
Process Connection Type
NPT
Secondary Scale Units
ft wc
Process Connection Gender
Male
Process Connection Location
Bottom
Temperature Range °F
70 Degrees to 320 Degrees F
Compatible Process Media
Water
Primary Scale Units
psi
Primary Pressure Range
0 to 100
Secondary Pressure Range
0 to 230
Case Shape
Round
Temperature Accuracy
+/-3-2-3%
Dial Color
White
Pressure Accuracy
+/-3-2-3%
Temperature Range °C
20 Degrees to 160 Degrees C
Pointer Material
Aluminum
Pressure Gauge Type
Tridicator Boiler Gauge
Accuracy Grade
ASME B40.100 Grade B
Pressure Range Type
Pressure
Lens Material
Glass
Scale Type
Dual
Stem Material
Copper Alloy
Temperature Scale Units
Degrees C, Degrees F
Neck Extension
0.32 in
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Accuracy Scale
Mid-Scale
Sensor Material
Copper Alloy
Pointer Color
Black
Temperature Range °F
70 Degrees to 320 Degrees F
Temperature Range °C
20 Degrees to 160 Degrees C
Process Media Temperature Measurement - Maximum
320 Degrees F
Process Media Temperature Measurement - Minimum
70 Degrees F
Process Media Temperature Scale Units
Degrees C, Degrees F
Operating Temperature - Minimum
-30 Degrees F
Primary Scale Pressure Measurement - Maximum
0 psi
Process Media Temperature Accuracy
+/-3-2-3%
Operating Temperature - Maximum
180 Degrees F
NEMA Enclosure Rating
No Enclosure
Secondary Scale Pressure Measurement - Minimum
0 ft wc
Primary Scale Pressure Measurement - Minimum
100 psi
IP Rating
IP52
Secondary Scale Pressure Measurement - Maximum
230 ft wc

Description

Round Boiler Gauge, Boiler Gauge Nominal Size 3 in, Gauge Connection Location Bottom, Gauge Connection Type MNPT, Gauge Connection Size 1/2 in, 0 to 100, psi, Gauge Accuracy +/-3-2-3 Percent, Basic Gauge Case Material Steel, Basic Gauge Wetted Parts Copper, Basic Gauge Lens Material Plastic, 80 Degrees to 320 Degrees Boiler Gauge Temp. Range - F, Temp. Range (C) 20 Degrees to 160 Degrees , Case Material Steel, Case Color Silver, Socket Material Copper Alloy, Tube Material Copper Alloy
