  5. Vacuum Gauge, 1/4 in. NPT, 2-1/2 in., Series: 201L

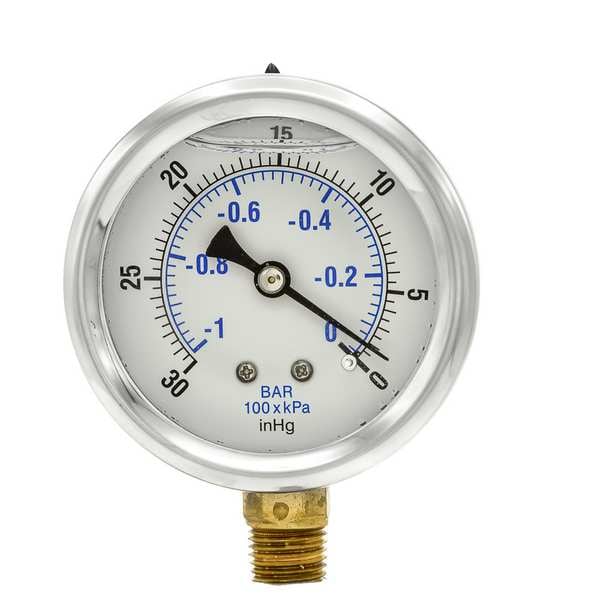

Pic Gauges Vacuum Gauge, 1/4 in. NPT, 2-1/2 in., Series: 201L PRO-201L-254A - main

Vacuum Gauge, 1/4 in. NPT, 2-1/2 in., Series: 201L

  • Mfr # PRO-201L-254A

  • Zoro # G5120057

product price:  $12.85
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
General Purpose
Liquid Filled
Yes
Gauge Nominal Dial Size
2 1/2 in
Basic Gauge Case Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRO-201L-254A
Zoro #
G5120057
UPC #
-
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
2 1/2 in
Gauge Connection Size
1/4 in
Connection Size
1/4 in NPT
Manufacturers Warranty Length
1 yr
Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Case Depth
1.2 in
Case Diameter
2.65 in
Nominal Dial Diameter
2 1/2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
General Purpose
Liquid Filled
Yes
Basic Gauge Case Material
Stainless Steel
Basic Gauge Wetted Parts
Copper
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Units
in Hg
Item
Industrial Vacuum Gauge
Gauge Primary Range Values
-30 to 0
Gauge Accuracy
+/-2-1-2%
Operating Temp. Range
30 Degrees to 160 Degrees F
Case Color
Metallic
Gauge Case Material
Stainless Steel
Gauge Filled With
Glycerin
Gauge Panel Mountable
No
Gauge Lens Material
Polycarbonate
Includes
Vent Plug
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
0.5
Gauge Case Color
Stainless Steel
Smallest Graduation
0.5 in Hg
Series
201L
Basic Gauge Lens Material
Plastic
Basic Gauge Socket Material
Copper
Range
30 in to 0 in Hg Vac
Basic Gauge Sensor Material
Copper
Gauge Sensor Material
Copper Alloy
Connection Location
Lower
Gauge Socket Material
Copper Alloy
Process Connection Gender
Male
Accuracy Grade
ASME B40.100 Grade A
Dry Dampening Feature
None
Field Fillable
No
Non-Sparking
No
Hazardous Location Rating
Not Rated
Lens Material
Polycarbonate
Vibration Resistance
Liquid-Filled
Secondary Pressure Range
-1 to 0
Secondary Scale Units
bar
Bezel Mounting Type
Removable
Process Connection Location
Bottom
Primary Scale Units
in Hg
Includes Vent Plug
Yes
Primary Scale Minor Graduations
0.5
Cleaned for Oxygen Service
No
Sensor Material
Copper Alloy
Panel-Mountable
No
Pressure Range Type
Vacuum
Includes Calibration Certificate
No
Pointer Material
Aluminum
Standards
ASME
Case Material
Stainless Steel
Application
General Purpose
Liquid-Filled Case
Yes
Blowout Safety Back
No
Pointer Color
Black
Bezel Material
Stainless Steel
Pressure Gauge Type
Industrial Pressure Gauge
Freeze Resistant Movement
No
Process Connection Type
NPT
IP/NEMA Rating
Not Rated
Accuracy
+/-2-1-2%
Gauge Case Liquid
Glycerin
Includes Mounting Hardware
No
Primary Pressure Range
30 to 0
Socket Material
Copper Alloy
Scale Type
Dual
Dial Color
White
Accuracy Scale
Mid-Scale
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Removable Bezel
No
Primary Scale Vacuum Measurement - Maximum
0 psi
Primary Scale Vacuum Measurement - Minimum
30 in Hg
Primary Scale Pressure Measurement - Minimum
-30 psi
Case Liquid
Glycerin
Secondary Scale Vacuum Measurement - Maximum
0 bar
Secondary Scale Pressure Measurement - Minimum
-1 bar
Secondary Scale Vacuum Measurement - Minimum
-1 bar
Process Media Temperature - Minimum
30 Degrees F
NEMA Enclosure Rating
No Enclosure
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
0 psi
Operating Temperature - Maximum
180 Degrees F
Compatible with Series
201L
Process Media Temperature - Maximum
160 Degrees F
Secondary Scale Pressure Measurement - Maximum
0 bar
Operating Temperature - Minimum
-30 Degrees F

Description

Industrial Vacuum Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
