  9. Vacuum Gauge, 1/4 in. NPT, 2 in.

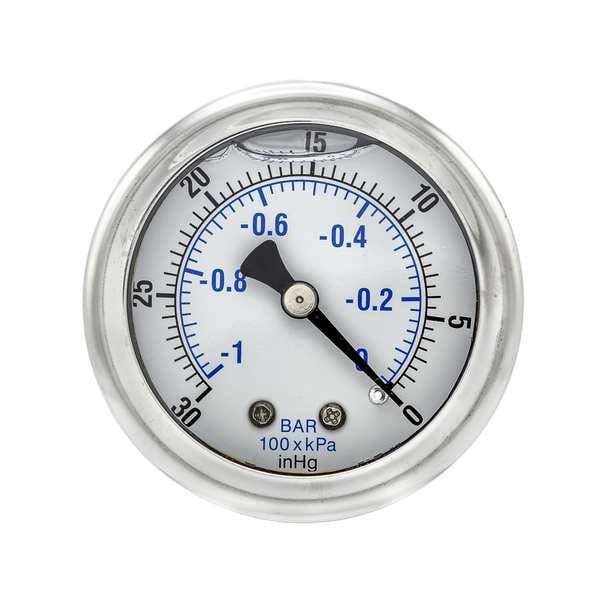

Pic Gauges Vacuum Gauge, 1/4 in. NPT, 2 in. 202L-204A - main

Vacuum Gauge, 1/4 in. NPT, 2 in.

  • Mfr # 202L-204A

  • Zoro # G5119689

product price: $21.19
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Gauge Nominal Dial Size
2 in
Basic Gauge Case Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
202L-204A
Zoro #
G5119689
UPC #
-
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
2 in
Gauge Connection Size
1/4 in
Connection Size
1/4 in NPT
Manufacturers Warranty Length
1 yr
Nominal Dial Size
2 in
Case Depth
1.18 in
Process Connection Size
1/4 in
Manufacturer Warranty Length
1 yr
Case Diameter
2.28 in
Nominal Dial Diameter
2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Basic Gauge Case Material
Stainless Steel
Basic Gauge Wetted Parts
Copper
Gauge Connection Type
MNPT
Gauge Connection Location
Center Back
Gauge Primary Range Units
in Hg
Gauge Case Material
Stainless Steel
Basic Gauge Socket Material
Copper
Operating Temp. Range
30 Degrees to 160 Degrees F
Case Color
Metallic
Gauge Accuracy
+/-3-2-3%
Series
202L
Calibration Certificate Included
No
Basic Gauge Lens Material
Plastic
Basic Gauge Sensor Material
Copper
Gauge Panel Mountable
No
Item
Industrial Vacuum Gauge
Gauge Socket Material
Copper Alloy
Gauge Lens Material
Polycarbonate
Gauge Filled With
Glycerin
Gauge Primary Range Values
-30 to 0
Gauge Case Color
Stainless Steel
Connection Location
Center Back
Includes
Vent Plug
Gauge Sensor Material
Copper Alloy
Gauge Primary Range Smallest Graduation
0.5
Range
30 in to 0 in Hg Vac
Smallest Graduation
0.5 psi
Accuracy Scale
Mid-Scale
Application
General Purpose
Secondary Pressure Range
-1 to 0 bar
Includes Mounting Hardware
No
Includes Vent Plug
Yes
Dial Color
White
Primary Pressure Range
30 to 0
Sensor Material
Copper Alloy
Field Fillable
No
Dial Face Material
Aluminum
Primary Scale Minor Graduations
0.5
Bezel Material
Stainless Steel
Blowout Safety Back
No
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Case Construction
Stainless Steel
Liquid-Filled Case
Yes
Removable Bezel
No
Case Material
Stainless Steel
Scale Type
Dual
Pointer Color
Black
Process Connection Location
Center Back
Primary Scale Units
in Hg
Accuracy
+/-3-2-3%
Gauge Case Liquid
Glycerin
Process Connection Type
NPT
Secondary Scale Units
bar
Vibration Resistance
Liquid-Filled
Pressure Range Type
Vacuum
Process Connection Gender
Male
Pointer Material
Aluminum
Hazardous Location Rating
Not Rated
IP/NEMA Rating
Not Rated
Includes Calibration Certificate
No
Lens Material
Polycarbonate
Standards
ASME
Panel-Mountable
No
Accuracy Grade
ASME B40.100 Grade B
Socket Material
Copper Alloy
Freeze Resistant Movement
No
Pressure Gauge Type
Industrial Pressure Gauge
Bezel Mounting Type
Removable
Dry Dampening Feature
None
Cleaned for Oxygen Service
No
Non-Sparking
No
Operating Temperature - Maximum
160 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Secondary Scale Pressure Measurement - Minimum
-1 bar
Primary Scale Pressure Measurement - Minimum
-30 psi
Primary Scale Pressure Measurement - Maximum
0 psi
Operating Temperature - Minimum
30 Degrees F
Secondary Scale Pressure Measurement - Maximum
0 bar
Compatible with Series
202L
Secondary Scale Vacuum Measurement - Maximum
0 bar
Process Media Temperature - Minimum
30 Degrees F
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
0 psi
Secondary Scale Vacuum Measurement - Minimum
-1 bar
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Maximum
160 Degrees F
Case Liquid
Glycerin

Description

Industrial Vacuum Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
