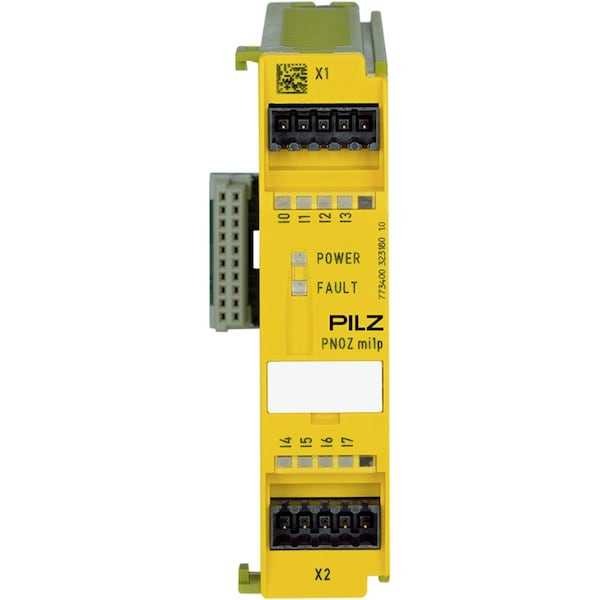

Safety Expansion Module

Safety I/O expansion module designed for use with the PNOZmulti Classic safety system. It provides additional safe digital inputs for monitoring emergency stop devices, safety gates, and other safety-related sensors in industrial automation systems. Specifications: -Type: Safety I/O Expansion Module -Series: PNOZmulti Classic (PNOZ mi1p) -Number of Inputs: 8 safe digital inputs -Input Type: Digital (24V DC logic) -Supply Voltage: 24V DC (via base unit) -Connection Type: Screw / Spring terminal options -Mounting Type: DIN Rail (35 mm) -Width: 22.5 mm -Dimensions: 94 x 22.5 x 121 mm -Input Applications: E-Stop, safety gate, light curtain, reset, scanner -Monitoring: Short-circuit detection via test pulses (base unit dependent) -Operating Temperature: 0 deg C to 60 deg C -Housing Material: Polyamide / ABS (flame retardant UL 94 V0) -Protection Class: IP20 -Standards: CE, TUV, cULus, KOSHA certified -Application: Machine safety / industrial safety systems
