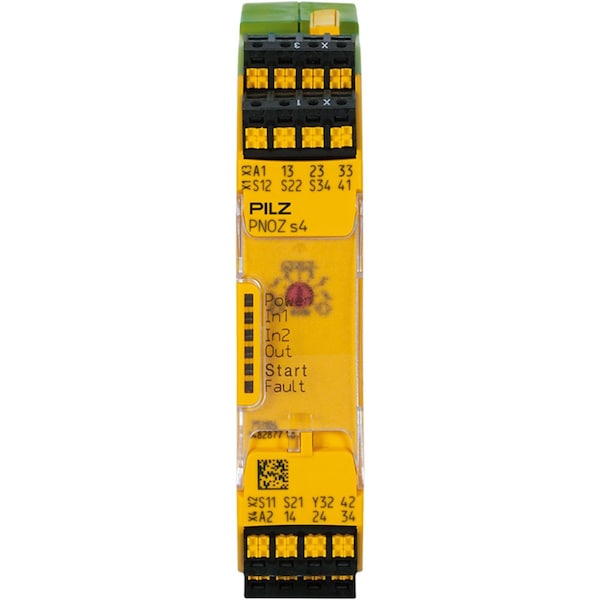

Safety Relay

Safety relay designed for monitoring emergency stop circuits, safety gates, and light curtains in industrial automation systems. It ensures safe machine shutdown by reliably controlling safety-related functions with fast response and high reliability. Specifications: -Type: Safety Relay (PNOZsigma Series) -Model: PNOZ s4 / Product ID: 751104 -Supply Voltage: 24V DC -Inputs: 1/2-channel wiring (with/without short circuit detection) -Start Mode: Manual / Automatic reset selectable -Safety Outputs: 3 N/O (Normally Open) -Auxiliary Outputs: 1 N/C (Normally Closed) -Additional Output: 1 semiconductor output -Contact Rating: 6 A (AC/DC1) -Switching Voltage: Up to 240V AC / 24V DC -Mounting Type: DIN Rail (22.5 mm width) -Connection Type: Plug-in spring-loaded terminals -Housing Material: Polycarbonate (PC) -Protection Class: IP40 -Operating Temperature: -10 deg C to +55 deg C -Application: E-Stop, safety gates, light curtain monitoring -Standards: CE, TUV, cULus approved
