Shop PIUSI

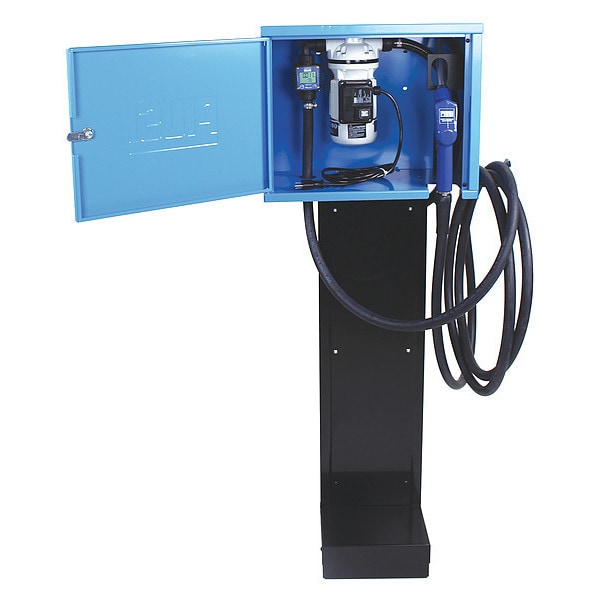

Electric Operated Drum Pump, 120VAC, 9 Max. Flow Rate , 43/64 HP, Cast iron, 3/4" Inlet

  • Mfr # RKDEFPEDTL

  • Zoro # G8500199

product price:  $2,243.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Voltage
120VAC
Application
Agriculture; Fleet; Industrial; Off-Road
HP
43/64
Housing Material
Nylon
GPM
9
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RKDEFPEDTL
Zoro #
G8500199
UPC #
-
Country of Origin
Italy

Dimensions

Inlet Size
3/4"
Discharge Tube Length
20 ft.
Hose Length
18 ft
Manufacturers Warranty Length
2 yr Manufacturing Defects
Outlet Size
1"
Suction Tube Length
48 in
Cord Length
72 in
Hose Inside Dia.
3/4 in
Hose Outside Dia.
1 1/8 in
Bung Connection Dia.
2 in
For Container Size
275 gal, 330 gal
Spout Discharge Size
5/8 in
Hose Outside Diameter
1 1/16 in
Hose Inside Diameter
3/4 in

Details

Voltage
120VAC
Application
Agriculture; Fleet; Industrial; Off-Road
HP
43/64
Housing Material
Nylon
GPM
9
Seal Material
Nitrile
Self-Priming
Yes
Max. Viscosity
1 cps
Item
Electric Drum Pump
Wetted Materials
Delrin, EPDM Nylon, NBR, Stainless steel
Phase
Single
Max. Head
13 ft.
For Use With
50/50 Antifreeze, Diesel Exhaust Fluid
Motor Enclosure
MEC
Max. GPM for Water
43
Hz
60
Hose Material
EPDM
Motor RPM
1,400 RPM
Motor Type
Permanent T Capcitor
Max. Liquid Temp.
104 Degrees F
Includes
Adapter, Delivery Hose
Features
COMPATIBLE WITH DEF
Max. Pressure
23 psi
Duty
Intermittent
Metered
Yes
Adapter Material
Stainless Steel
Agency Compliance
ISO 22241
Suction Tube Type
1-Piece Tube
Adapter Type
RSV
Nozzle Material
Nylon/Stainless Steel/Viton
Duty Cycle
20 Minutes On/20 Minutes Off
Hose Tube Material
EPDM
Variable Speed
No
Runs Dry
No
Power Source
Corded Electric
Hose Cover Material
EPDM
Full Load Amps
1.95 A
For Media Type
Antifreeze, DEF
Discharge Connection Type
Hose Barb
Includes Discharge Hose
Yes
Frequency (Hz)
60 Hz
Includes Suction Tube
Yes
Pump Connection ID
1 in
Housing Material - Pumps
Nylon
Food Grade
No
Max. Head - Pumps
45 ft
Discharge Tube Outlet ID
3/4 in
Discharge Tube Outlet OD
1 1/16 in
Max. Flow Rate
9 gpm
Series
NO
Max. Head Pressure
22 psi
Number of Phases
1
Motor HP
2/3 hp
For Container Type
Tote
Min. Fluid Temp.
12 Degrees F
Noise Level
75 dB
Diesel Exhaust Fluid Compatible
Yes
Includes Spout
Yes
Nozzle Operation
Automatic
Spout Material
Stainless Steel
Pump Connection Type
BSP
Includes Bung Adapter
Yes
Includes Nozzle
Yes
Pump Connection OD
1 in
Thermal Protection
Yes
Compatible Chemicals
Antifreeze (Coolant), DEF
Max. Fluid Temp.
104 Degrees F
Rated Voltage
120 V AC
Grease
NT
Max. Outlet Pressure
22 psi
Gear Lube
NT
Adapter Connection Type
Buttress
Explosion Proof
No
Motor Horsepower
2/3 hp
Frequency
60 Hz
Includes Follower Plate
No Follower Plate Included
Meter Type Included
Digital
Chemical Compatibility
Antifreeze Coolant, DEF
Pump Technology
Diaphragm
Adapter Connection Standard
Buttress
Motor Speed
1,400 RPM
Minimum Fluid Temperature
12 Degrees F
Maximum Fluid Temperature
104 Degrees F
Wetted Material
Delrin/EPDM/Nylon/Nitrile Rubber/Stainless steel
Container Cover Type Included
No Cover Included
Standards
ISO 22241
Maximum Outlet Pressure
22 psi
Nozzle Fluid Compatibility
DEF
Maximum Head Pressure
23.2 psi
Full Load Current
1.95 A
Maximum Flow Rate
9 gpm
Maximum Viscosity
1 cps
Maximum Head
45 ft
Motor Enclosure Design
Totally Enclosed Fan Cooled
Meter Unit Of Measure
Gallons, Liters, Pints, Quarts
Power Source - TS Only
Corded Electric

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 22 psi, Max. Outlet Pressure 22 psi, For Use With 50/50 Antifreeze, Diesel Exhaust Fluid, Rated Voltage 120 V AC, Pump Connection ID 1 in, Hose Length 18 ft, Suction Tube Length 48 in, Cord Length 72 in, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes
