This item is Discontinued.

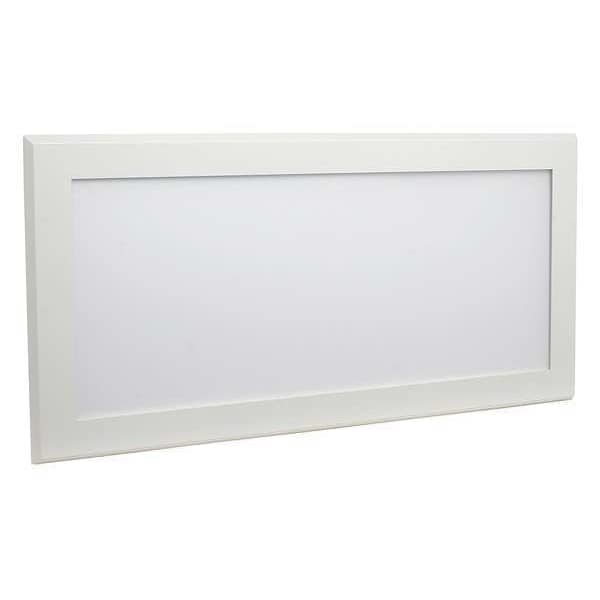

Pixi PIXI LED Flat Panel FLT12R27MD1622A

PIXI LED Flat Panel (Discontinued)

  • Mfr # FLT12R27MD1622A
  • Zoro # G8794746
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLT12R27MD1622A
Zoro #
G8794746
UPC #
855158003072
Country of Origin
Taiwan, Province of China

Dimensions

Nominal Size - Fixtures
1 ft x 2 ft
Height
9/16 in
Width
12 in
Length
24 in
Overall Length
24 in
Overall Height
5/8 in
Nominal Size
1 ft x 2 ft
Overall Width
12 in

Details

Item
LED Flat Panel
Fixture Item
Flat Panel
Voltage
90/130V AC
Lighting Technology
LED
Watts
23.5
Lighting Certification
ENERGY STAR
Lamp Type - Fixtures
Integrated LED
Dimmable
Yes
Lumens
2,000 lm
Color Temperature
2700K
Color Rendering Index
81
Max. Fixture Wattage
23.5 W
Standards
cUL Listed, Damp Rated, Dry Rated, UL Listed
Lumens Per Watt
85.0
Fixture Rated Life
50,000 hr
Color Temp.
2700K
Includes
(2) Junction Box Screws, (2) Wire Connector, (3) Wire Nuts, (4) Dry Wall Screws, (4) Toggle Bolts, Grounding Wire, Installation Bracket, Installation Guide, Mounting Plate
LED Replacement For
100W INC, 23W to 26W CFL
Warranty
5 yr
Fixture Voltage
90 to 130
Temp. Range
-20 to 40 Degrees C
Dimmable / Non-Dimmable
Dimmable
Rated Life
50,000 hr
CRI
81
Lumens per Watt
85 lm/W
Lens Shape
Flat
Min. Ambient Temp.
-4 Degrees F
Light Technology
LED
For Bulb Type
Integrated LED
Sensor Type
No Sensor
Mounting Style
Ceiling
Emergency Battery Backup
No
Max. Ambient Temp.
104 Degrees F
Series
No Series

Description

1 ft x 2 ft, Lens Shape Flat, 2700K, 2,000 lm, 85 lm/W, LED, LED Replacement For 100W INC, 23W to 26W CFL, Sensor Type No Sensor, Max. Fixture Wattage 23.5 W, Color Rendering Index 81, 90/130V AC, Lighting Certification ENERGY STAR, Dimmable Yes, Emergency Battery Backup No
